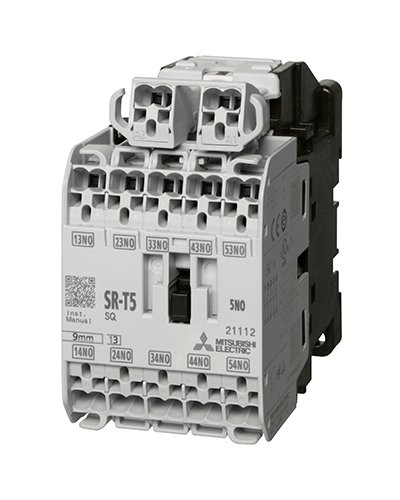

SRD-T5SQ DC110V 4A1B – 577823 Mitsubishi Contactor

Name: SRD-T5SQ DC110V 4A1B - 577823 Mitsubishi Contactor | Industify
Brand: Mitsubishi Electric
SKU: SRD-T5SQ DC110V 4A1B
Price: 1.00 USD
Availability: InStock

SKU: SRD-T5SQ DC110V 4A1B

Add to wishlist Add to compare

Categories: Circuit Breakers and Electrical Protection, Contactors Tags: 577823, SRD-T5SQ DC110V 4A1B

Product information

Series	MS-T SERIES CONTACTOR RELAY
Type	DC OPERATED
Frame Size	5
Current Type	DC TYPE
Coil Voltage (V)	110
Rated Current (A)	DC-13 220V (COIL LOAD): 0.3
Rated Voltage (V)	690
Number of Poles	3
No of Auxiliary Contacts NO	4
No of Auxiliary Contacts NC	1
Frequency Range (Hz)	50/60
Min. Ambient Temperature (°C)	-10
Max. Ambient Temperature (°C)	40
Wiring	SPRING-CLAMP
Design / Styling	SPRING CLAMP TERMINALS
Compliant with Standard(s)	EN60947-4-1, IEC60947-4-1, JIS C8201-4-1
Protection Class	IP20
Depth (mm)	100
Weight (kg)	43
Width (mm)	44
Height (mm)	7, 76
CE	COMPLIANT
EAC	NON-COMPLIANT
UKCA	COMPLIANT
Cardboard (g)	500
Other plastic (g)	1
RoHS Compliance	COMPLIANT
Dangerous Goods Class	NO
WEEE	B2B
Dangerous Goods Identifier	NO
Brand	Mitsubishi Electric

Description

Description

Mitsubishi Magnetic Contactor

Enhance your electrical system with the Mitsubishi Magnetic Contactor. Designed for reliable DC operation, this contactor ensures smooth performance and seamless functionality. With a compact frame size and spring-clamp terminals, installation and wiring are quick and straightforward, saving you time and effort.

Efficient Operation: The MS-T series contactor relay offers reliable DC control, providing peace of mind and stable electrical management.
Convenient Design: Featuring spring-clamp terminals, this contactor simplifies installation and maintenance, promoting efficient workflow and reducing downtime.
Durable Construction: Compliant with industry standards, this contactor is built to last, ensuring long-term performance and safety for your electrical system.
