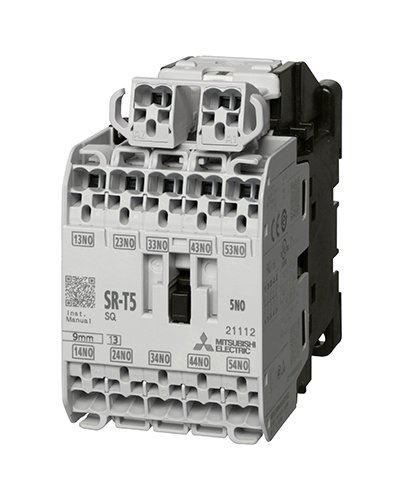

Mitsubishi SRD-T5SQ DC100V 4A1B FA-MC: Magnetic Contactor - industify.com

SRD-T5SQ DC100V 4A1B – 577820 Mitsubishi Contactor

Name: SRD-T5SQ DC100V 4A1B - 577820 Mitsubishi Contactor | Industify
Brand: Mitsubishi Electric
SKU: SRD-T5SQ DC100V 4A1B
Price: 1.00 USD
Availability: InStock

SKU: SRD-T5SQ DC100V 4A1B

Add to wishlist Add to compare

Categories: Circuit Breakers and Electrical Protection, Contactors Tags: 577820, SRD-T5SQ DC100V 4A1B

Product information

Series	MS-T SERIES CONTACTOR RELAY
Type	DC OPERATED
Frame Size	5
Current Type	DC TYPE
Coil Voltage (V)	100
Rated Current (A)	DC-13 220V (COIL LOAD): 0.3
Rated Voltage (V)	690
Number of Poles	3
No of Auxiliary Contacts NO	4
No of Auxiliary Contacts NC	1
Frequency Range (Hz)	50/60
Min. Ambient Temperature (°C)	-10
Max. Ambient Temperature (°C)	40
Wiring	SPRING-CLAMP
Design / Styling	SPRING CLAMP TERMINALS
Compliant with Standard(s)	EN60947-4-1, IEC60947-4-1, JIS C8201-4-1
Protection Class	IP20
Depth (mm)	100
Weight (kg)	43
Width (mm)	44
Height (mm)	7, 76
CE	COMPLIANT
EAC	NON-COMPLIANT
UKCA	COMPLIANT
Cardboard (g)	500
Other plastic (g)	1
RoHS Compliance	COMPLIANT
Dangerous Goods Class	NO
WEEE	B2B
Dangerous Goods Identifier	NO
Brand	Mitsubishi Electric

Description

Description

Enhance Your Electrical System with Mitsubishi Magnetic Contactor

Upgrade your electrical system with the Mitsubishi Magnetic Contactor from the MS-T Series. The DC-operated contactor ensures reliable performance and precise control, providing smooth operation and enhanced safety measures for your equipment. With a compact design and spring-clamp terminals, installation is quick and easy, saving you time and effort.

Ensure consistent and efficient electrical control
Experience reliable performance and precise operation
Benefit from quick and easy installation with spring-clamp terminals

Compliant with industry standards and offering a range of features, the Mitsubishi Magnetic Contactor is ideal for various applications. Upgrade your system today and experience the quality and dependability of Mitsubishi electrical components.
