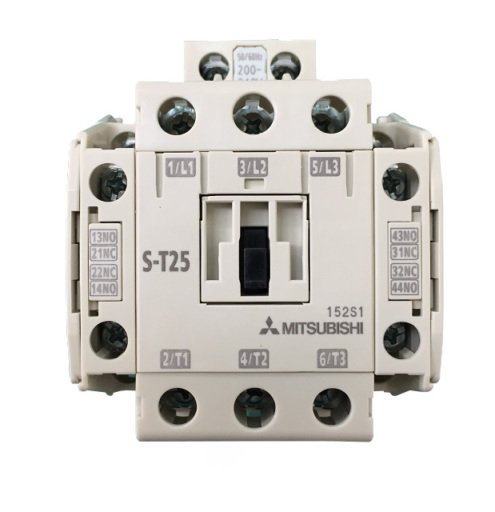

S-T25 AC24V 2A2B – 279246 Mitsubishi Contactor

Name: S-T25 AC24V 2A2B - 279246 Mitsubishi Contactor | Industify
Brand: Mitsubishi Electric
SKU: S-T25 AC24V 2A2B
Price: 1.00 USD
Availability: InStock

SKU: S-T25 AC24V 2A2B

Add to wishlist Add to compare

Categories: Circuit Breakers and Electrical Protection, Contactors Tags: 279246, S-T25 AC24V 2A2B

Product information

Series	MS-T SERIES MAGNETIC CONTACTOR
Type	AC OPERATED, NON-REVERSING
Frame Size	25
Current Type	AC TYPE
Coil Voltage (V)	24
Rated Current (A)	3-PHASE AC690V: 12
Rated Capacity (kW)	3-PHASE AC220-240V: 3.5, 3-PHASE AC380-440V: 5.5, 3-PHASE AC690V: 5.5
Rated Voltage (V)	690
Number of Poles	3
No of Auxiliary Contacts NO	2
No of Auxiliary Contacts NC	2
Frequency Range (Hz)	50/60
Min. Ambient Temperature (°C)	-10
Max. Ambient Temperature (°C)	40
Wiring	SCREW-CLAMP
Design / Styling	STANDARD
Compliant with Standard(s)	EN60947-4-1, IEC60947-4-1, JIS C8201-4-1
Mech. Durability (at no Load)	10 000 000 OPERATIONS
Protection Class	IP20
Depth (mm)	81
Weight (kg)	41
Width (mm)	63
Height (mm)	81
CE	COMPLIANT
EAC	NON-COMPLIANT
UL/cUL	COMPLIANT
UKCA	COMPLIANT
Cardboard (g)	300
Other plastic (g)	1
REACH Limit Exceeded	NO
RoHS Compliance	COMPLIANT
Dangerous Goods Class	NO
WEEE	B2B
Dangerous Goods Identifier	NO
Brand	Mitsubishi Electric

Description

Description

Upgrade Your Electrical System with Mitsubishi Magnetic Contactor

Enhance Safety and Efficiency: The Mitsubishi Magnetic Contactor offers reliable non-reversing operation, ensuring the smooth functioning of your electrical circuits. With a high mechanical durability and standard compliance, this contactor provides a secure and stable connection for your systems.

Flexible Compatibility: Designed for 3-phase AC systems with various voltage options, this contactor is suitable for a wide range of applications. With screw-clamp wiring and multiple auxiliary contacts, it allows for easy installation and customization to meet your specific needs.

Improve Performance: Ensure consistent and safe operation of your electrical equipment
Reduce Downtime: Minimize the risk of malfunctions or failures with a durable and compliant contactor
Enhance Flexibility: Easily adapt the contactor to fit different voltage requirements and system configurations
