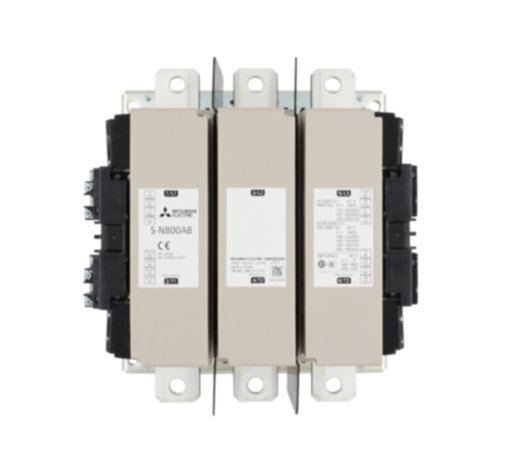

S-N800AB AC200V 2A2B – 594986 Mitsubishi Contactor

Name: S-N800AB AC200V 2A2B - 594986 Mitsubishi Contactor | Industify
Brand: Mitsubishi Electric
SKU: S-N800AB AC200V 2A2B
Price: 1.00 USD
Availability: InStock

SKU: S-N800AB AC200V 2A2B

Add to wishlist Add to compare

Categories: Circuit Breakers and Electrical Protection, Contactors Tags: 594986, S-N800AB AC200V 2A2B

Product information

Series	MS-N SERIES MAGNETIC CONTACTOR
Type	AC OPERATED, NON-REVERSING
Frame Size	10
Current Type	AC TYPE
Coil Voltage (V)	200-240
Rated Current (A)	3-PHASE AC690V: 5
Rated Capacity (kW)	3-PHASE AC220-240V: 2.5, 3-PHASE AC380-440V: 4, 3-PHASE AC690V: 4
Rated Voltage (V)	690
Number of Poles	3
No of Auxiliary Contacts NO	2
No of Auxiliary Contacts NC	2
Frequency Range (Hz)	50/60
Min. Ambient Temperature (°C)	-10
Max. Ambient Temperature (°C)	40
Wiring	SCREW-CLAMP
Design / Styling	STANDARD
Compliant with Standard(s)	EN60947-4-1, IEC60947-4-1, JIS C8201-4-1
Electrical Durability (Load)	500 000 OPERATIONS
Mech. Durability (at no Load)	5 000 000 OPERATIONS
Protection Class	IP00
Depth (mm)	230
Weight (kg)	20
Width (mm)	290
Height (mm)	310
CE	COMPLIANT
EAC	NON-COMPLIANT
UKCA	COMPLIANT
Cardboard (g)	3.650
Other plastic (g)	5, 9
RoHS Compliance	COMPLIANT
Dangerous Goods Class	NO
WEEE	B2B
Dangerous Goods Identifier	NO
Brand	Mitsubishi Electric

Description

Description

Mitsubishi MS-N Series Magnetic Contactor

The Mitsubishi MS-N Series Magnetic Contactor offers reliable non-reversing operation for enhanced safety and efficiency in your electrical system. With a wide coil voltage range and multiple rated current options, this contactor provides flexibility to accommodate various power requirements. Its durable design and compliance with industry standards ensure long-lasting performance and peace of mind.

Flexible Power Handling: With multiple rated current options and a wide coil voltage range, this contactor adapts to diverse electrical systems easily.
Reliable Non-Reversing Operation: The non-reversing feature enhances operational safety and consistency in power distribution.
Durable and Compliant: Designed for longevity, this contactor meets industry standards for reliability and performance, ensuring consistent operation over time.
