Name: OS32C-BP VER2 Omron | Industify
Brand: Omron
SKU: OS32C-BP VER2
Price: 1.00 USD
Availability: InStock

Type of safety according to IEC 61496-1

Maximum safety range

3 m

Maximum warning range

10 m

Cable entry direction

Back

Type of switching output of the OSSD

PNP

Connection Method

Pigtail connector

Key features

40, 50 or 70 mm, Configurable object resolution of 30, Manual/auto start, Reference boundary monitoring

Type of protection

Hand protection

Detection capability

70 mm

Suitable for safety functions

Yes

Scan angle

270 °

Scanning interval

0.4 Hz

Response Time

80 ms

Number of safety fields

140

Wavelength of the sensor

905 nm

Number of protected semiconductor outputs

Number of semiconductor outputs with signalling function

Laser protection class

Class 1

Supply Voltage DC

16.8-30 V

Voltage type

Max. output current at protected output

250 mA

Degree of protection (IP)

IP65

With alert field output

Yes

Ambient temperature

-10-50 °C

Overall length of sensor

143 mm

Height of sensor

105 mm

Width of sensor

105 mm

Brand

Omron

Description

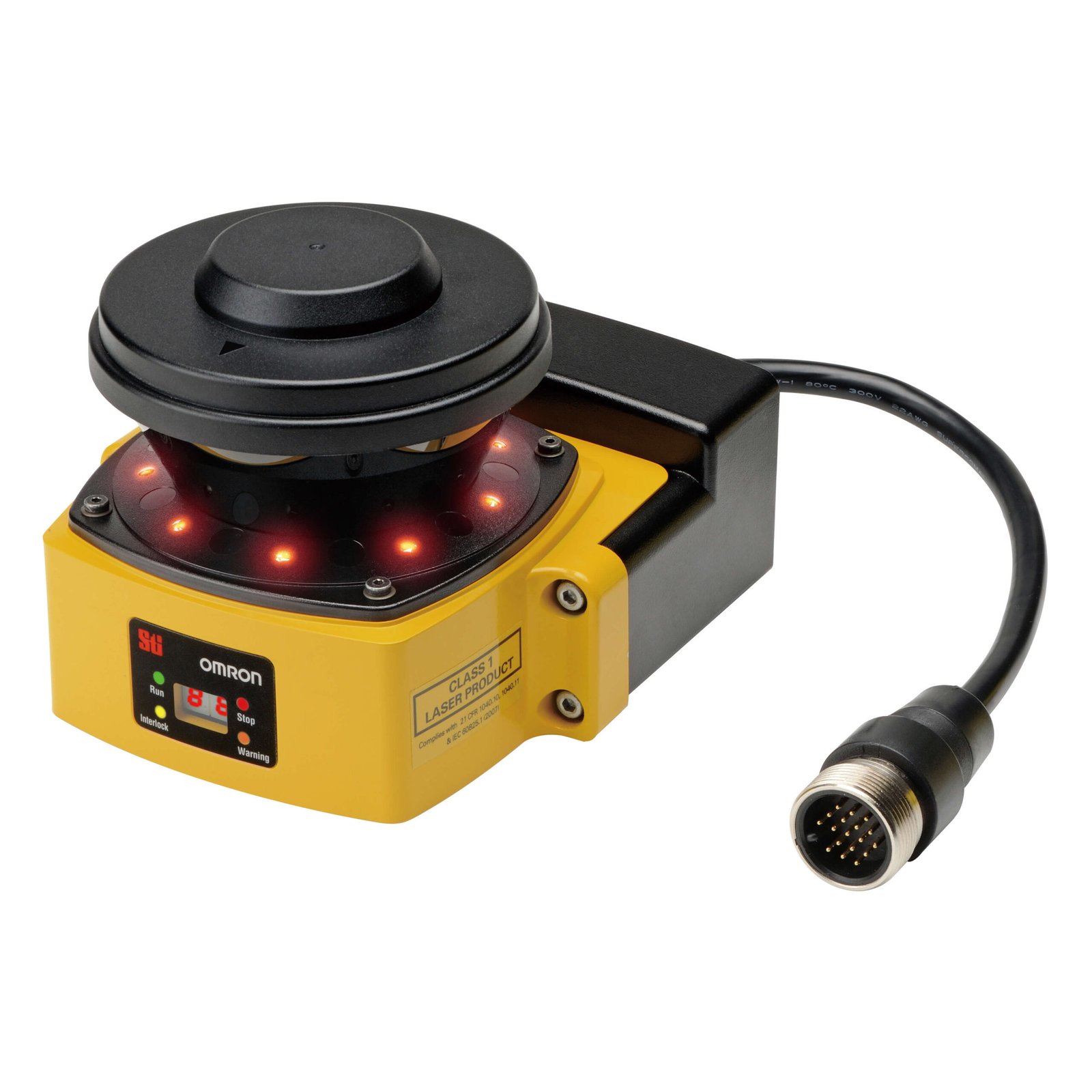

Omron OS32C Laser Scanner: Enhancing Safety and Efficiency

The Omron OS32C Laser Scanner provides advanced safety capabilities in industrial settings, offering a maximum safety range of 33m to ensure reliable protection. With a scanning angle of 270° and a response time of 80ms, this scanner can swiftly detect any obstacles within its range, enhancing workplace safety. Its hand protection feature allows for secure monitoring of specific areas, further boosting safety measures in critical zones.

Ensures a safe working environment with its 270° scanning angle
Quickly detects obstacles with a response time of 80ms
Offers hand protection for enhanced safety in critical areas

The Omron OS32C Laser Scanner is designed to maximize efficiency with its flexible configuration options and intuitive user interface. Its configurable object resolution and easy-to-use controls make it suitable for various safety functions, enabling users to adapt to changing requirements seamlessly. With a compact design and IP65 protection rating, this scanner is reliable, durable, and versatile for a wide range of industrial applications.
