Name: OS32C-BP-DM Omron | Industify
Brand: Omron
SKU: OS32C-BP-DM
Price: 1.00 USD
Availability: InStock

Type of safety according to IEC 61496-1

Maximum safety range

3 m

Maximum warning range

10 m

Communication port(s)

EtherNet/IP

Cable entry direction

Back

Type of switching output of the OSSD

PNP

Connection Method

Pigtail connector

Key features

40, 50 or 70 mm, Configurable object resolution of 30, Manual/auto start, Reference boundary monitoring

Type of protection

Hand protection

Detection capability

70 mm

Suitable for safety functions

Yes

Scan angle

270 °

Scanning interval

0.4 Hz

Response Time

80 ms

Number of safety fields

140

Wavelength of the sensor

905 nm

Number of protected semiconductor outputs

Number of semiconductor outputs with signalling function

Laser protection class

Class 1

Supply Voltage DC

16.8-30 V

Voltage type

Max. output current at protected output

250 mA

Degree of protection (IP)

IP65

With alert field output

Yes

Ambient temperature

-10-50 °C

Overall length of sensor

143 mm

Height of sensor

105 mm

Width of sensor

105 mm

Brand

Omron

Description

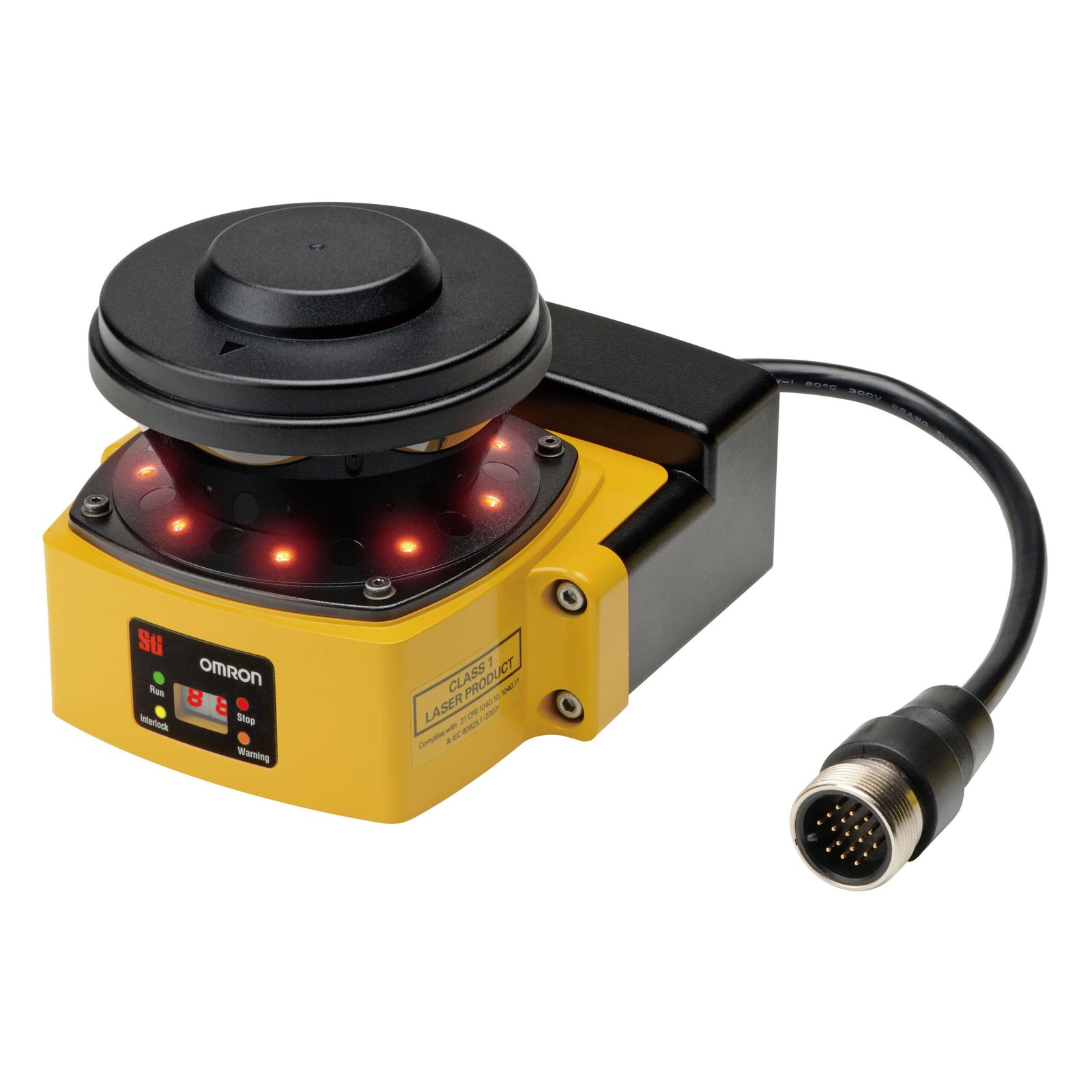

Omron OS32C Safety Laser Scanner

The Omron OS32C Safety Laser Scanner offers advanced safety features that ensure maximum protection for operators and equipment in industrial environments. With a wide scan angle of 270 degrees and a maximum safety range of 33 meters, this scanner provides comprehensive coverage for detecting potential hazards. The rapid response time of 80 milliseconds enhances real-time threat detection and minimizes the risk of accidents in the workspace.

Enhances safety in industrial settings
Provides extensive coverage for hazard detection
Ensures rapid response time for immediate threat detection

The Omron OS32C Safety Laser Scanner is suitable for various safety functions, including hand protection, thanks to its configurable object resolution and manual/auto start capabilities. With an IP65 rating for protection against dust and water ingress, this scanner is designed to withstand harsh industrial environments. Its EtherNet/IP communication port enables seamless integration with existing systems, enhancing overall operational efficiency and safety compliance.
