Name: OS32C-BP-4M Omron | Industify
Brand: Omron
SKU: OS32C-BP-4M
Price: 1.00 USD
Availability: InStock

Type of safety according to IEC 61496-1

Maximum safety range

4 m

Maximum warning range

15 m

Cable entry direction

Back

Type of switching output of the OSSD

PNP

Connection Method

Pigtail connector

Key features

40, 50 or 70 mm, Configurable object resolution of 30, Manual/auto start, Reference boundary monitoring

Type of protection

Hand protection

Detection capability

70 mm

Suitable for safety functions

Yes

Scan angle

270 °

Scanning interval

0.4 Hz

Response Time

80 ms

Number of safety fields

140

Wavelength of the sensor

905 nm

Number of protected semiconductor outputs

Number of semiconductor outputs with signalling function

Laser protection class

Class 1

Supply Voltage DC

16.8-30 V

Voltage type

Max. output current at protected output

250 mA

Degree of protection (IP)

IP65

With alert field output

Yes

Ambient temperature

-10-50 °C

Overall length of sensor

143 mm

Height of sensor

105 mm

Width of sensor

105 mm

Brand

Omron

Description

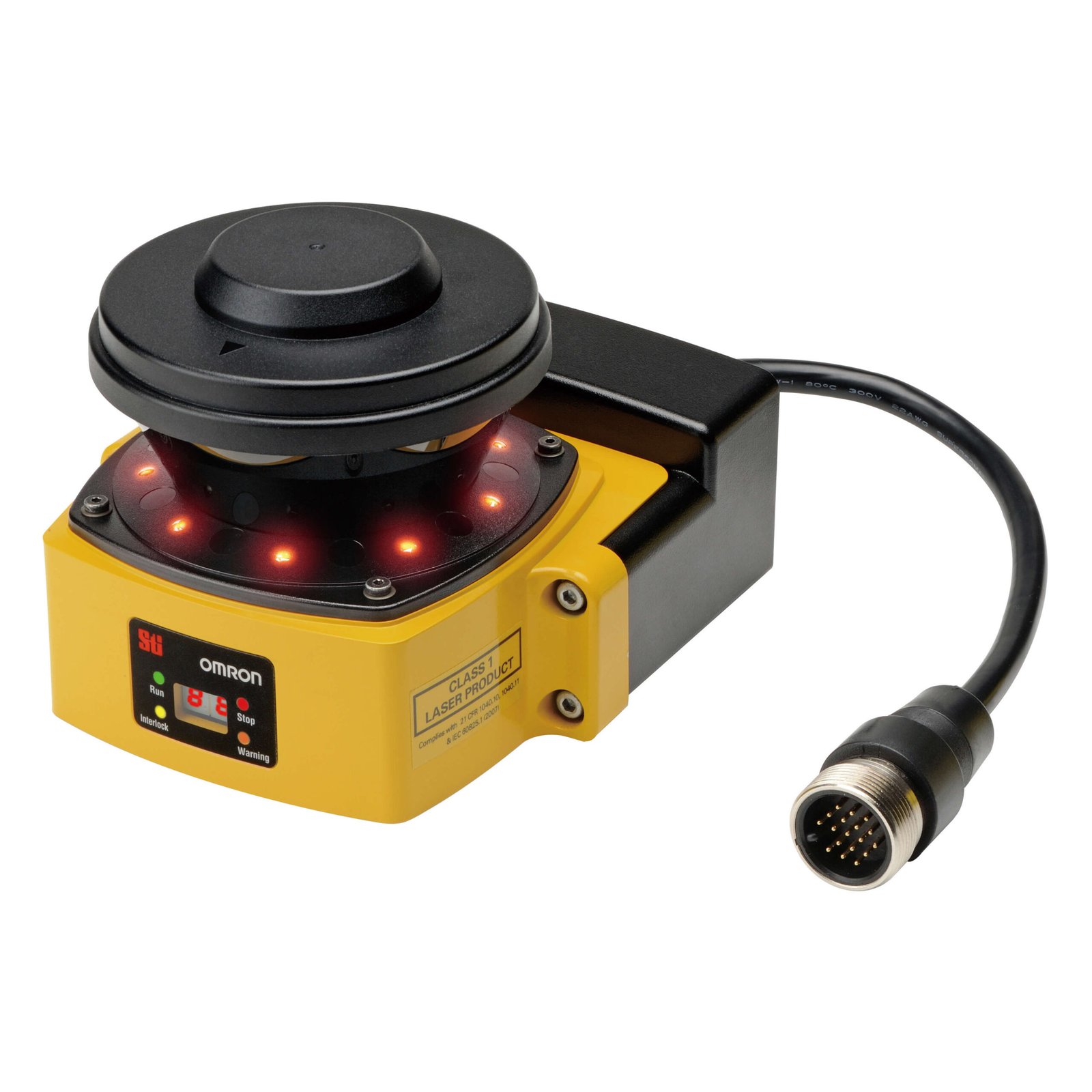

Omron OS32C Safety Laser Scanner

Enhance Workplace Safety: The Omron OS32C Safety Laser Scanner provides a maximum safety range of 34 meters, ensuring a comprehensive safety perimeter to protect employees and equipment. With a warning range of 15 meters, the scanner offers ample time for intervention or alert before entering a hazardous zone.

Flexible Installation Options: Featuring a configurable object resolution of 30, 40, 50, or 70 mm, the OS32C allows for precise monitoring tailored to specific application requirements. The pigtail connector and manual/auto start functionality make installation and operation effortless, enhancing workflow efficiency.

Reliable Performance: With quick response time (80 ms) and a wide scanning angle of 270 degrees, the Omron OS32C Safety Laser Scanner provides fast and accurate detection capabilities. The IP65-rated construction ensures durability in various industrial environments, offering peace of mind for continuous operation.
