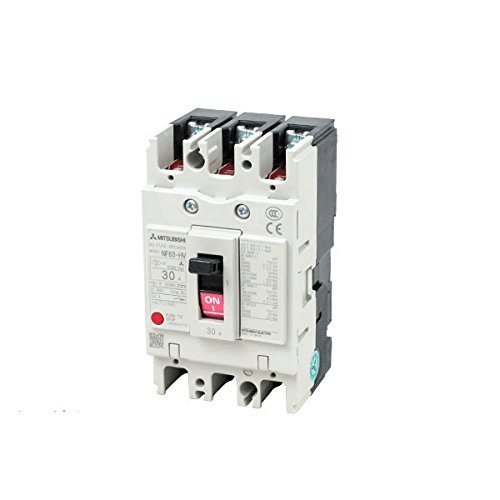

NF63-HV 3P 25A – 254782 Mitsubishi Molded Case Circuit Breaker

Name: NF63-HV 3P 25A - 254782 Mitsubishi Molded Case Circuit Breaker | Industify
Brand: Mitsubishi Electric
SKU: NF63-HV 3P 25A
Price: 1.00 USD
Availability: InStock

SKU: NF63-HV 3P 25A

Add to wishlist Add to compare

Categories: Circuit Breakers, Circuit Breakers and Electrical Protection, Molded Case Circuit Breakers Tags: 254782, NF63-HV 3P 25A

Product information

Series	WS-V SERIES – MCCB
Type	NF-H TYPE (HIGH-PERFORMANCE)
Frame Size	63
Rated Current (A)	25
Current Type	AC/DC
Number of Poles	3
Rated Voltage (V)	690
Breaking Capacity at 400V (kA)	10/8
Compliant with Standard(s)	EN 60947-2, IEC 60947-2
Cycles with Rated Current	8000
Cycles without Rated Current	15000
Automatic Tripping Device	THERMAL-MAGNETIC
Depth (mm)	90
Weight (kg)	7
Width (mm)	75
Height (mm)	130
CE	COMPLIANT
Shipping Approvals	ABS, BV, CCS, DNV·GL, LR
EAC	NON-COMPLIANT
UL/cUL	NON-COMPLIANT
UKCA	COMPLIANT
Cardboard (g)	60
REACH Limit Exceeded	NO
RoHS Compliance	COMPLIANT
Dangerous Goods Class	NO
WEEE	B2B
Dangerous Goods Identifier	NO
Brand	Mitsubishi Electric

Description

Description

Mitsubishi NF63-HV 3P 25A Moulded-Case Circuit Breaker

The Mitsubishi NF63-HV 3P 25A Moulded-Case Circuit Breaker offers high-performance protection for your electrical systems. With a breaking capacity of 80kA at 400V, this circuit breaker ensures reliable operation and prevents damage from electrical faults. Its compact design and automatic tripping device enhance safety while saving space in your setup.

Robust Protection: Built to meet EN 60947-2 and IEC 60947-2 standards, providing comprehensive protection for your electrical circuits.
Space-Saving Design: The compact frame size and automatic tripping device ensure efficient use of space in your electrical panel.
Reliable Performance: With a rated current of 25A and a high breaking capacity, this circuit breaker delivers consistent and reliable performance.
