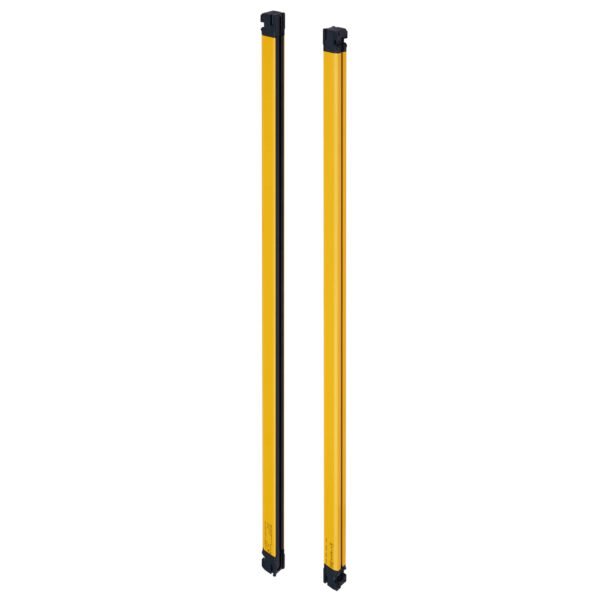

F3SG-2SRB1200-45 Omron

Name: F3SG-2SRB1200-45 Omron | Industify
Brand: Omron
SKU: F3SG-2SRB1200-45
Price: 1.00 USD
Availability: InStock

SKU: F3SG-2SRB1200-45

Add to wishlist Add to compare

Categories: Light Curtains, Safety Equipment, Safety Sensors, Single Beam Tags: F3SG-2SRB1200-45, Omron

Product information

Sensing Method	Safety light curtain
Type of protection	Arm/leg protection
Number of beams	30
Detection capability	45 mm
Safety field height	1200 mm
Type of safety according to IEC 61496-1	2
Beam spacing	40 mm
Maximum safety range	20 m
Minimum operating distance	0.3 m
Key features	Auxiliary output, Blanking, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, Operating range selection, PNP/NPN selection, Pre-reset, Response time adjustment, Warning zone
Degree of protection (IP)	IP65/IP67/IP67G
Cascadable	Yes
Number of protected semiconductor outputs	2
Number of semiconductor outputs with signalling function	1
Type of switching output of the OSSD	PNP/NPN
Response Time	8 ms
With muting function	Yes
With beam coding	Yes
Communication option(s)	IO-Link, Bluetooth, USB
Suitable for safety functions	Yes
Scope of delivery	Transmitter and receiver
Wavelength of the sensor	870 nm
Connection Method	Root connector (order separately)
Supply Voltage DC	19.2-28.8 V
Max. output current at protected output	300 mA
Ambient temperature	-30-55 °C
Overall length of sensor	1200 mm
Height of sensor	38 mm
Width of sensor	32 mm
Number of fixed side-mount brackets	2
Number of adjustable side-mount brackets	2
Number of intermediate brackets	1
Brand	Omron

Description

Description

Description

Omron F3SG-SR/PG Safety Light Curtain for Arm/Leg Protection

Enhance workplace safety and protect operators with the Omron F3SG-SR/PG Safety Light Curtain, offering a safety field height of 1200 mm and a detection capability of 3045 mm. The maximum safety range of 20 m ensures comprehensive coverage, while the minimum operating distance of 0.3 m promotes precise detection for optimal safety.

Multiple safety features such as auxiliary output, muting function, and external device monitoring (EDM) provide customizable safety solutions for various industrial applications.
Easy integration and flexibility with communication options including Bluetooth, IO-Link, and USB, allowing seamless connectivity to your existing systems.
Reliable performance in challenging environments, with an IP65/IP67/IP67G degree of protection and a wide ambient temperature range of -30 to 55 °C, ensuring durable operation in diverse conditions.
