HomeShopSafety EquipmentLight CurtainsF3SG-2SRB1040-25-K Omron
Omron F3SG-2SRB1040-25-K F3SG-SR/PG - industify.com
Omron

F3SG-2SRB1040-25-K Omron

SKU: F3SG-2SRB1040-25-K

Add to wishlist Add to compare
Categories: , , , Tags: ,
Product information
Sensing Method

Safety light curtain
Type of protection

Hand protection
Number of beams

52
Detection capability

25 mm
Safety field height

1040 mm
Type of safety according to IEC 61496-1

2
Beam spacing

20 mm
Maximum safety range

16 m
Minimum operating distance

0.3 m
Key features

Auxiliary output, Blanking, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, Operating range selection, PNP/NPN selection, Pre-reset, Response time adjustment
Degree of protection (IP)

IP65/IP67/IP69K
Cascadable

No
Number of protected semiconductor outputs

2
Number of semiconductor outputs with signalling function

1
Type of switching output of the OSSD

PNP/NPN
Response Time

13 ms
With muting function

Yes
With beam coding

Yes
Communication option(s)

IO-Link, Bluetooth, USB
Suitable for safety functions

Yes
Scope of delivery

Transmitter and receiver
Wavelength of the sensor

870 nm
Connection Method

Root connector (order separately)
Supply Voltage DC

19.2-28.8 V
Max. output current at protected output

300 mA
Ambient temperature

-30-55 °C
Overall length of sensor

1040 mm
Height of sensor

60 mm
Width of sensor

60 mm
Brand

Omron
Description

Description

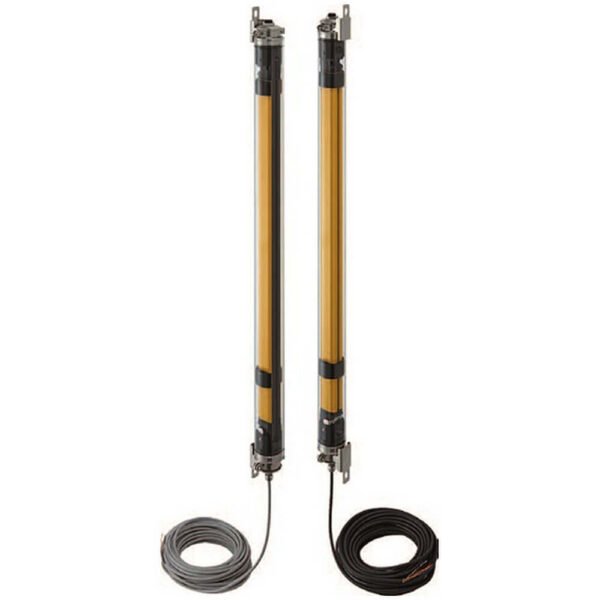

Enhance Safety with Omron F3SG-SR/PG Safety Light Curtain

Ensure Protection: The Omron F3SG-SR/PG Safety Light Curtain delivers hand protection with its 5225 mm safety field height and 1040 mm detection capability, offering a comprehensive safeguarding solution for operators and machinery alike.

Customizable Features: Benefit from the 16 m maximum safety range along with muting function and beam coding options, providing flexibility in adapting safety measures to specific operational needs.

  • Improved safety with a broad safety field height and detection capability
  • Customizable features such as muting function and beam coding for tailored safety solutions
  • Enhanced protection for operators and machinery in diverse industrial settings
