Name: F3SG-2SRB0240-45 Omron | Industify
Brand: Omron
SKU: F3SG-2SRB0240-45
Price: 1.00 USD
Availability: InStock

Sensing Method

Safety light curtain

Type of protection

Arm/leg protection

Number of beams

Detection capability

45 mm

Safety field height

240 mm

Type of safety according to IEC 61496-1

Beam spacing

40 mm

Maximum safety range

20 m

Minimum operating distance

0.3 m

Key features

Auxiliary output, Blanking, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, Operating range selection, PNP/NPN selection, Pre-reset, Response time adjustment, Warning zone

Degree of protection (IP)

IP65/IP67/IP67G

Cascadable

Yes

Number of protected semiconductor outputs

Number of semiconductor outputs with signalling function

Type of switching output of the OSSD

PNP/NPN

Response Time

8 ms

With muting function

Yes

With beam coding

Yes

Communication option(s)

IO-Link, Bluetooth, USB

Suitable for safety functions

Yes

Scope of delivery

Transmitter and receiver

Wavelength of the sensor

870 nm

Connection Method

Root connector (order separately)

Supply Voltage DC

19.2-28.8 V

Max. output current at protected output

300 mA

Ambient temperature

-30-55 °C

Overall length of sensor

240 mm

Height of sensor

38 mm

Width of sensor

32 mm

Number of fixed side-mount brackets

Number of adjustable side-mount brackets

Brand

Omron

Description

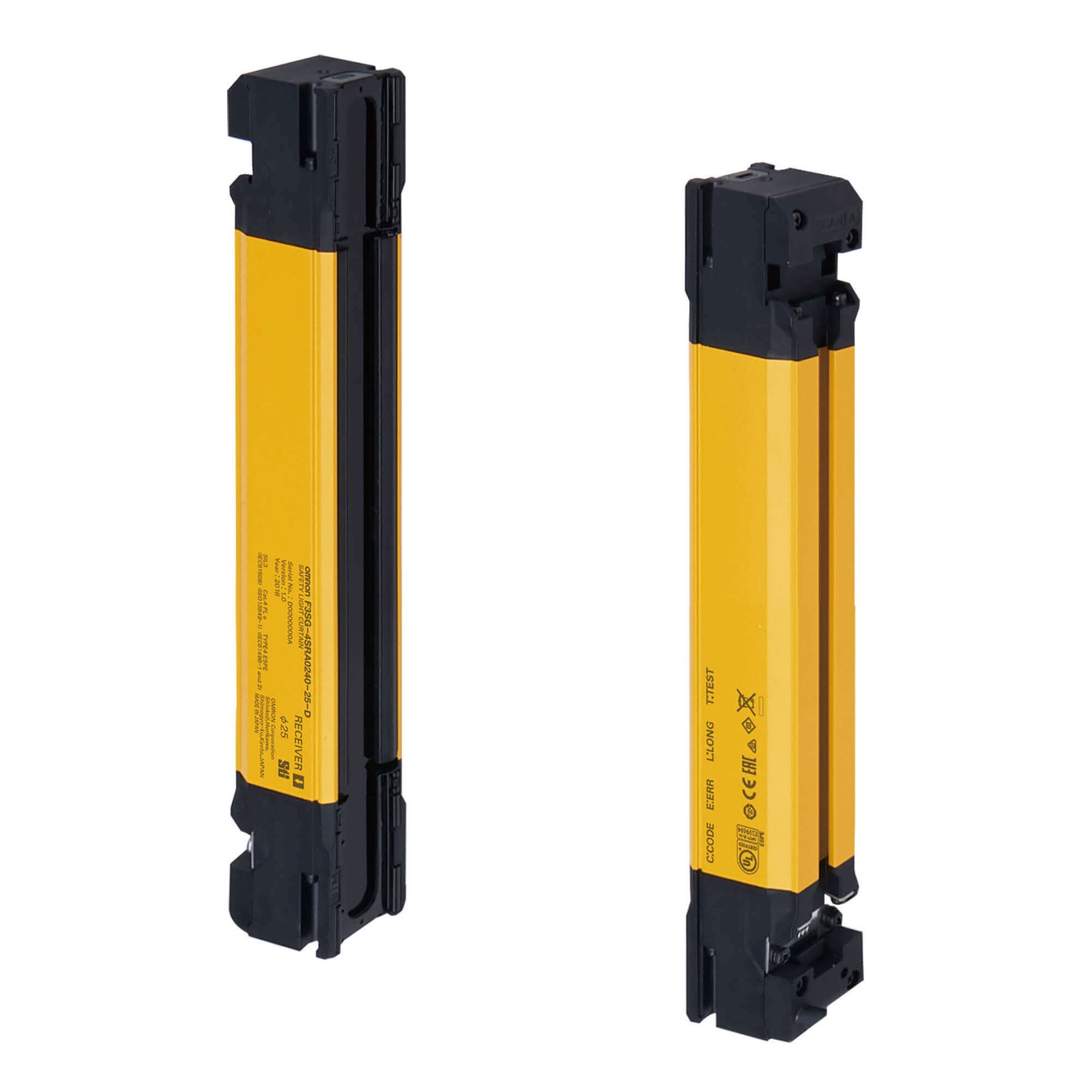

Omron F3SG-SR/PG Safety Light Curtain for Enhanced Workplace Safety

Ensure optimal workplace safety with the Omron F3SG-SR/PG Safety Light Curtain, designed to offer arm and leg protection with a safety field height of 645mm. This innovative product features 20m maximum safety range and a response time of 8ms, allowing for quick detection and protection. The IP65/IP67/G degree of protection ensures durability and reliability even in challenging industrial environments.

Experience advanced functionality with features such as External Device Monitoring (EDM), Muting function, and Bluetooth, IO-Link, and USB communication options. The Omron Safety Light Curtain is cascadable and offers mutual interference prevention for seamless integration into your safety system. With PNP/NPN selection and Warning zone options, this product provides versatile safety solutions for various applications.
