Name: F3SG-2SRB0160-14 Omron | Industify
Brand: Omron
SKU: F3SG-2SRB0160-14
Price: 1.00 USD
Availability: InStock

Sensing Method

Safety light curtain

Type of protection

Finger protection

Number of beams

Detection capability

14 mm

Safety field height

160 mm

Type of safety according to IEC 61496-1

Beam spacing

10 mm

Maximum safety range

10 m

Minimum operating distance

0.3 m

Key features

Auxiliary output, Blanking, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, Operating range selection, PNP/NPN selection, Pre-reset, Response time adjustment, Warning zone

Degree of protection (IP)

IP65/IP67/IP67G

Cascadable

Yes

Number of protected semiconductor outputs

Number of semiconductor outputs with signalling function

Type of switching output of the OSSD

PNP/NPN

Response Time

8 ms

With muting function

Yes

With beam coding

Yes

Communication option(s)

IO-Link, Bluetooth, USB

Suitable for safety functions

Yes

Scope of delivery

Transmitter and receiver

Wavelength of the sensor

870 nm

Connection Method

Root connector (order separately)

Supply Voltage DC

19.2-28.8 V

Max. output current at protected output

300 mA

Ambient temperature

-30-55 °C

Overall length of sensor

160 mm

Height of sensor

38 mm

Width of sensor

32 mm

Number of fixed side-mount brackets

Number of adjustable side-mount brackets

Brand

Omron

Description

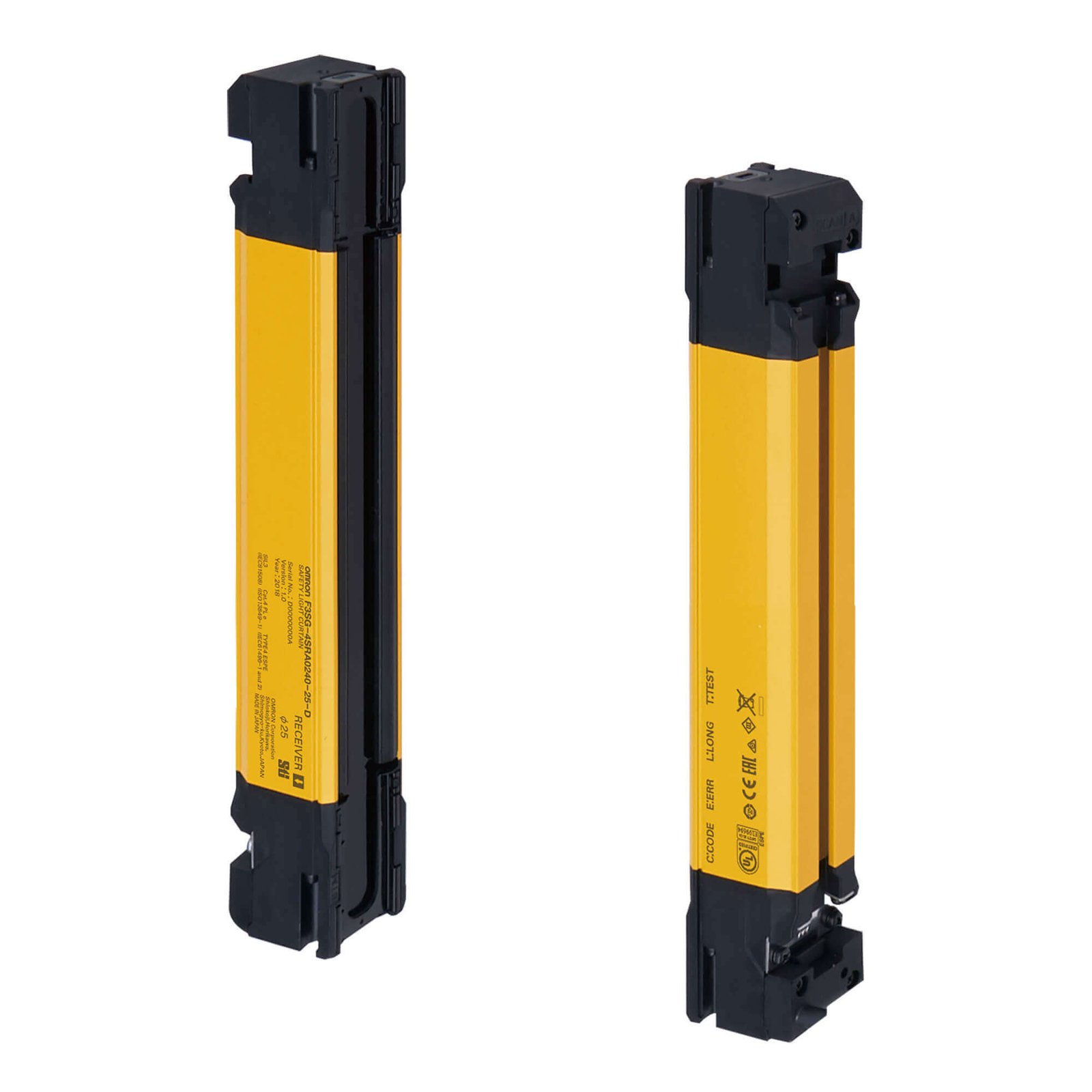

Omron F3SG-SR/PG Safety Light Curtain

Enhance workplace safety with the Omron F3SG-SR/PG Safety Light Curtain, designed to provide finger protection and ensure peace of mind for operators. With a safety field height of 160 mm and a maximum safety range of 10 meters, this light curtain offers reliable detection capability while maintaining a minimum operating distance of 0.3 meters.

Improve operational efficiency with response time adjustment for rapid detection and reaction times.
Utilize features such as muting and beam coding to enhance functionality and tailor the light curtain to specific applications.
Maximize flexibility and compatibility with communication options including Bluetooth, IO-Link, and USB for seamless integration into existing safety systems.

Experience the benefits of a versatile safety solution with the Omron F3SG-SR/PG Safety Light Curtain, suitable for various safety functions and delivered with all necessary components for easy setup. With a focus on user-centric design, this light curtain ensures reliable performance across a wide range of applications while maintaining a high degree of protection with an IP65/IP67 rating.
