Name: BSP B010-EV009-P00S2B-S4 Balluff Pressure Sensor | Industify
Brand: Balluff
SKU: BSP00Y4
Price: 1.00 USD
Availability: InStock

Measuring range

0…10 bar

Accuracy

±0.5 % FSO BFSL

Overload pressure

20 bar

Burst pressure

35 bar

Operating voltage Ub

18…30 VDC

Interface

IO-Link 1.1

Analog output

Analog, current selectable 4…20 mA/0…10 V, voltage/analog

Switching output

2x PNP/NPN NO/NC switchable

Connection

4-pin, Connector, M12x1-Male

Process connection

G 1/4" (DIN 3852)

Process connection material

1.4301 stainless steel

Gasket, material

Fluoroelastomer

Housing material

1.4301 stainless steel, High-density polyethylene, PE

Media temperature

-40…125 °C

Ambient temperature

-40…85 °C

Ip Rating

Ip67, when threaded in

Approval/Conformity

CE, cULus, UKCA, WEEE

Brand

Balluff

Description

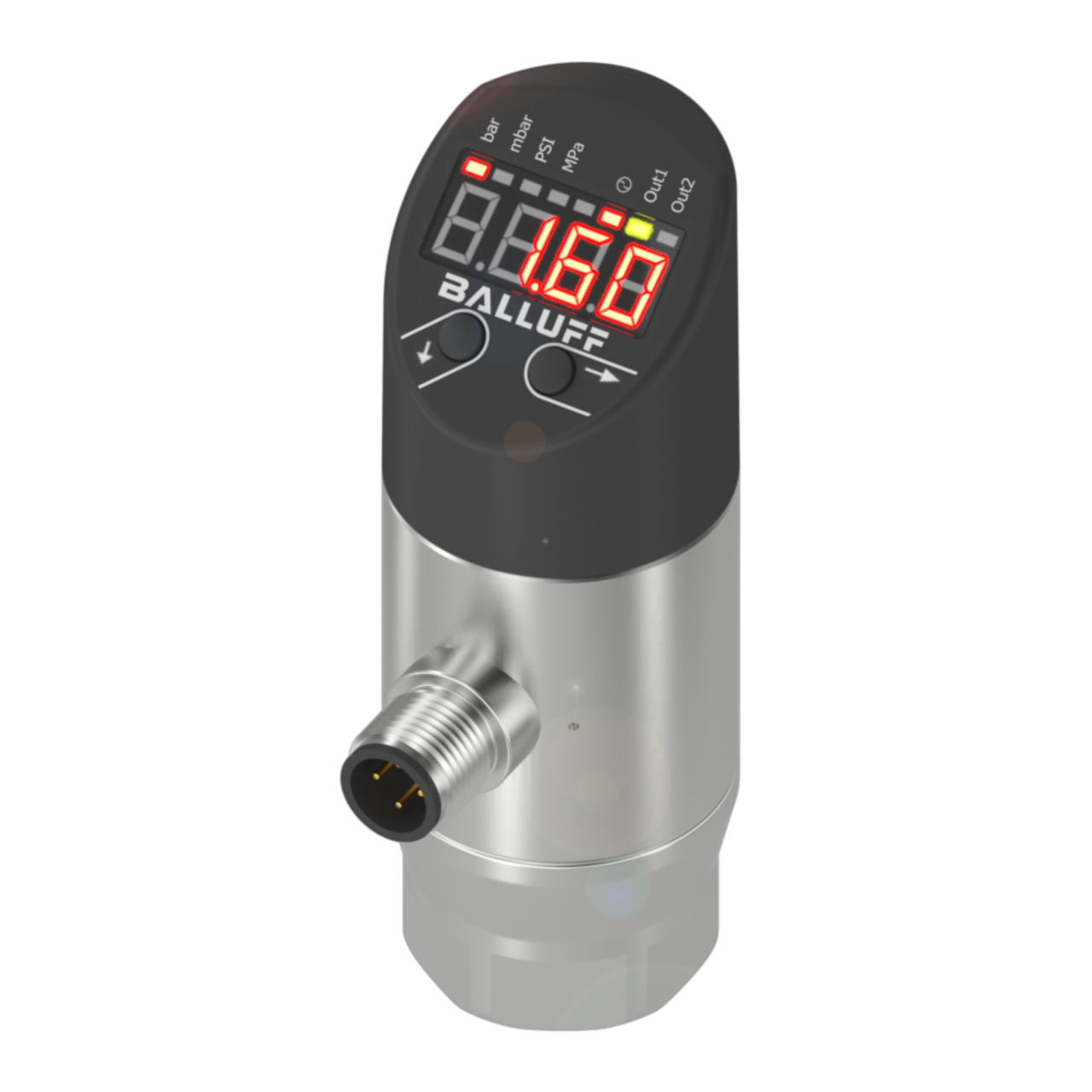

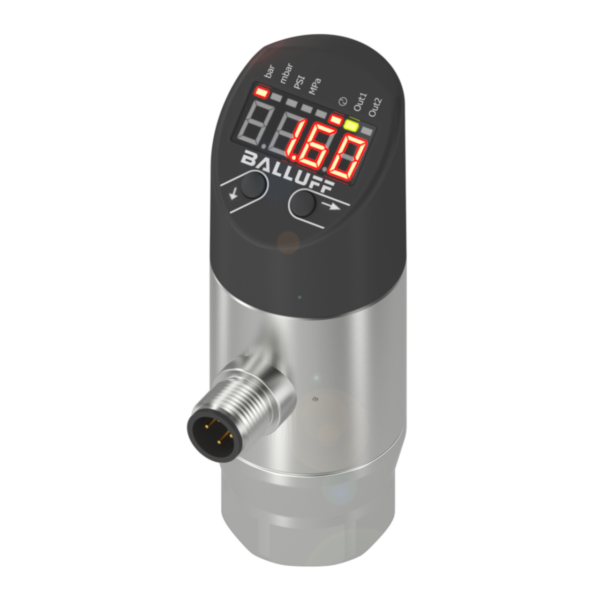

Balluff Pressure Sensor: Efficient Monitoring Solution

Ensure precise monitoring and control of pressure levels with the Balluff Pressure Sensor. With a wide measuring range of 0-10 bar and high accuracy of ±0.5% FSO BFSL, this sensor provides reliable data for optimal performance. The sensor’s IO-Link 1.1 interface allows for seamless integration with existing systems, enhancing overall efficiency.

Flexible Output Options: The sensor offers analog voltage/current outputs that are selectable, providing versatility in data transmission.
Durable Construction: Made from high-quality stainless steel and featuring IP67 rating, the sensor is built to withstand harsh industrial environments, ensuring long-term reliability.

Experience improved process control and real-time monitoring with the Balluff Pressure Sensor. With its user-friendly design and robust construction, this sensor is a valuable asset for enhancing operational efficiency and maintaining system performance.
