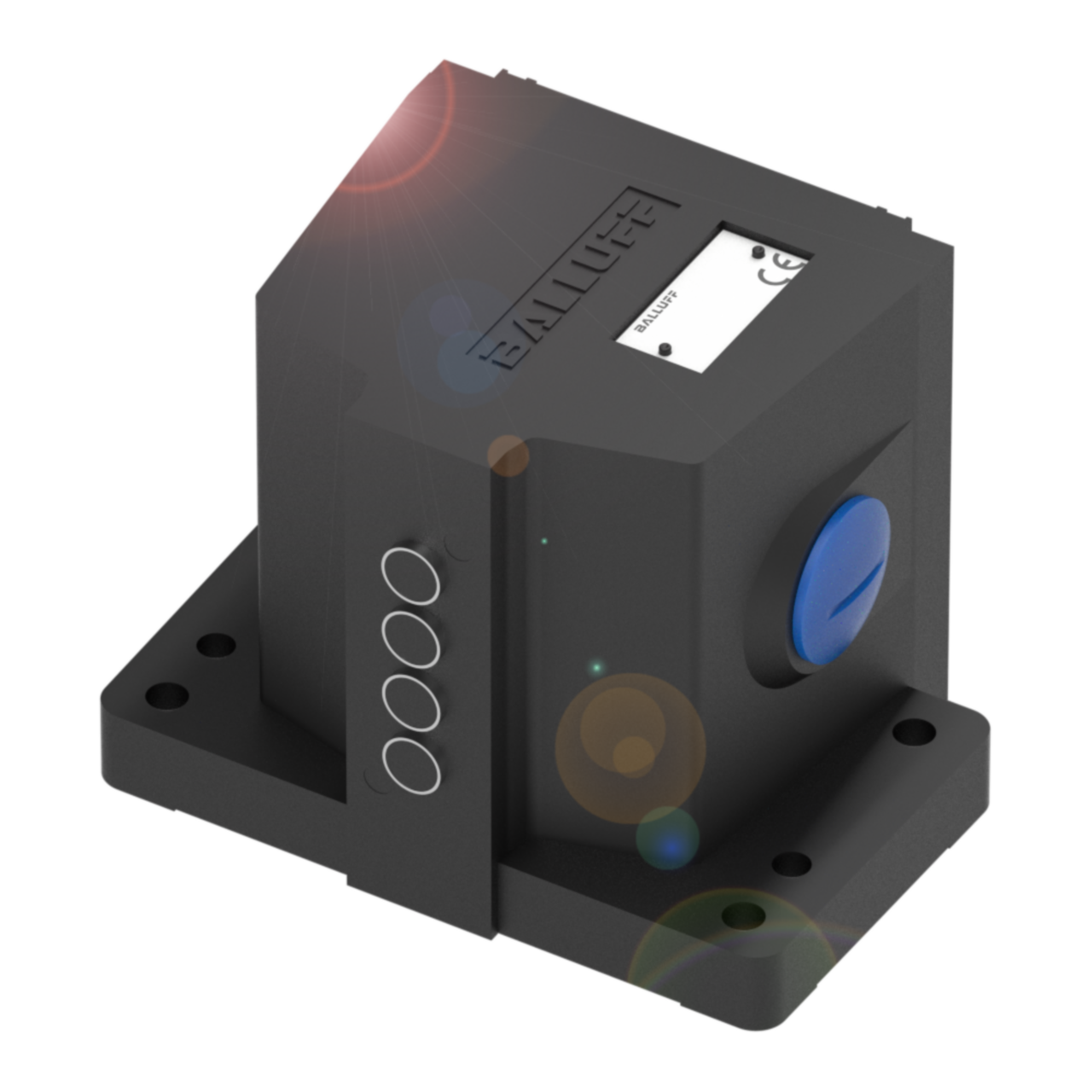

Name: BNS 816-B05-PA-12-602-11 Balluff Mechanical Cam Switch | Industify
Brand: Balluff
SKU: BNS03A3
Price: 1.00 USD
Availability: InStock

Dimension

120 x 105 x 87 mm

Housing material

Aluminum, Anodized

Version

Inductive

Operating principle

1-5. Switch position: Inductive

Range

2 mm

Switching Frequency

1-5. Switch position: 1500 Hz

Continuous current

1-5. Switch position: 0.2 A

Rated operating voltage Ue

1-5. Switch position: 24 VDC

Installation

Vertical

Switch position spacing

12 mm

Connection type

1-5. Switch position: Screw terminal

Ambient temperature

-25…70 °C

Ip Rating

Ip67

Approval/Conformity

CE, UKCA, WEEE

Brand

Balluff

Description

Balluff Mechanical Cam Switch

Experience enhanced efficiency and reliability with the Balluff Mechanical Cam Switch. Its durable aluminum housing ensures long-term performance, even in harsh industrial environments. The inductive operating principle allows for precise and consistent switching between positions, guaranteeing accurate control over your systems.

Reliable Performance: With a switching frequency of up to 1500 Hz, this cam switch provides reliable operation even during high-speed processes.
Easy Installation: Featuring a vertical installation design with a switch position spacing of 12 mm, this cam switch offers easy and convenient mounting options.
Robust Protection: With an IP67 rating and a wide ambient temperature range of -25 to 70 °C, this cam switch is built to withstand challenging conditions while maintaining consistent performance.

Ensure precision and control in your industrial applications with the Balluff Mechanical Cam Switch. Trust in its accurate switching capabilities and robust design to optimize your systems and enhance overall operational efficiency.
