BMF 305K-NS-C-2-SA2-S49-00,3 Balluff Magnetic Field Sensor

Name: BMF 305K-NS-C-2-SA2-S49-00,3 Balluff Magnetic Field Sensor | Industify
Brand: Balluff
SKU: BMF0050
Price: 1.00 USD
Availability: InStock

SKU: BMF0050

Add to wishlist Add to compare

Categories: Magnetic Field Sensors, Sensors Tags: 3, BMF 305K-NS-C-2-SA2-S49-00, BMF0050

Product information

Slot type	variable
Dimension	33.5 x 5 x 10.5 mm
Principle of operation	Magnetic field sensor
Connection	M8x1-Male, 3-pin
Cable	0.3 m, PUR
Housing material	LCP
Switching output	NPN Normally open (NO)
Switching Frequency	10000 Hz
Operating voltage Ub	10…30 VDC
Ambient temperature	-25…85 °C
Ip Rating	Ip67
Approval/Conformity	CE, cULus, UKCA, WEEE
Brand	Balluff

Description

Description

Description

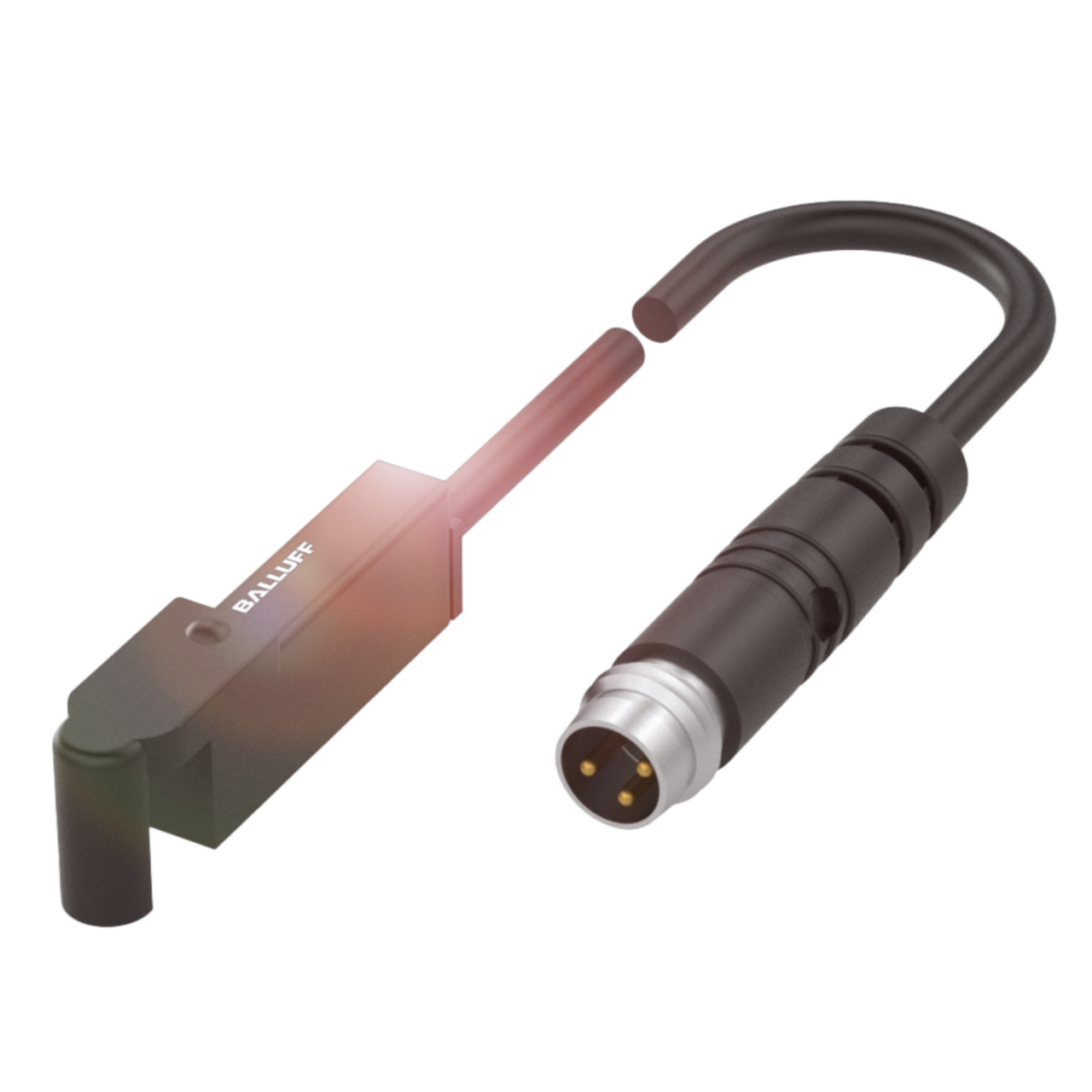

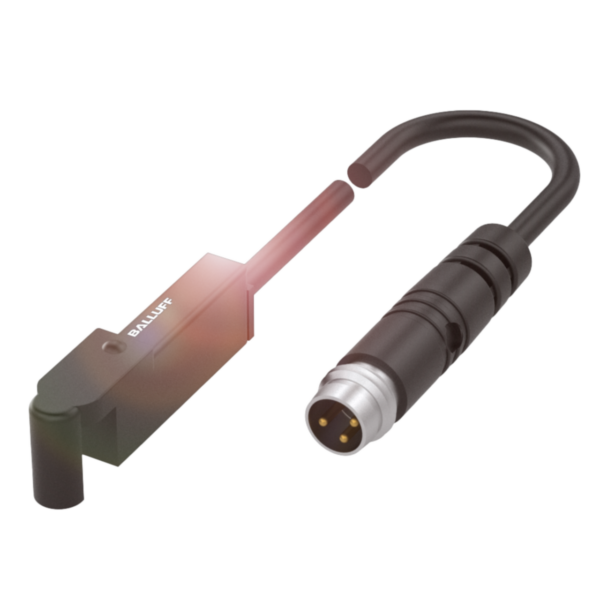

Balluff Magnetic Field Sensor

Enhance your industrial automation systems with the Balluff Magnetic Field Sensor. This compact sensor, with its variable dimensions and magnetic field detection capabilities, offers precise and reliable measurements. The IP67 rating ensures durability in challenging environments, while the NPN Normally open switching output provides seamless integration into your existing systems.

Accurate and reliable measurements
Durable design for harsh environments
Effortless integration with existing systems

With an operating voltage range of 10-30 VDC and an ambient temperature range of -25 to 85 °C, this sensor is versatile and suitable for a wide range of applications. The Balluff Magnetic Field Sensor is CE, UKCA, cULus, and WEEE compliant, guaranteeing high standards of quality and safety.
