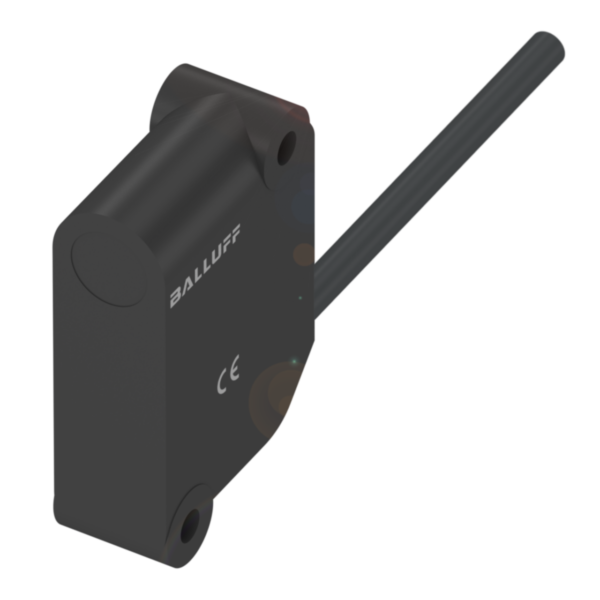

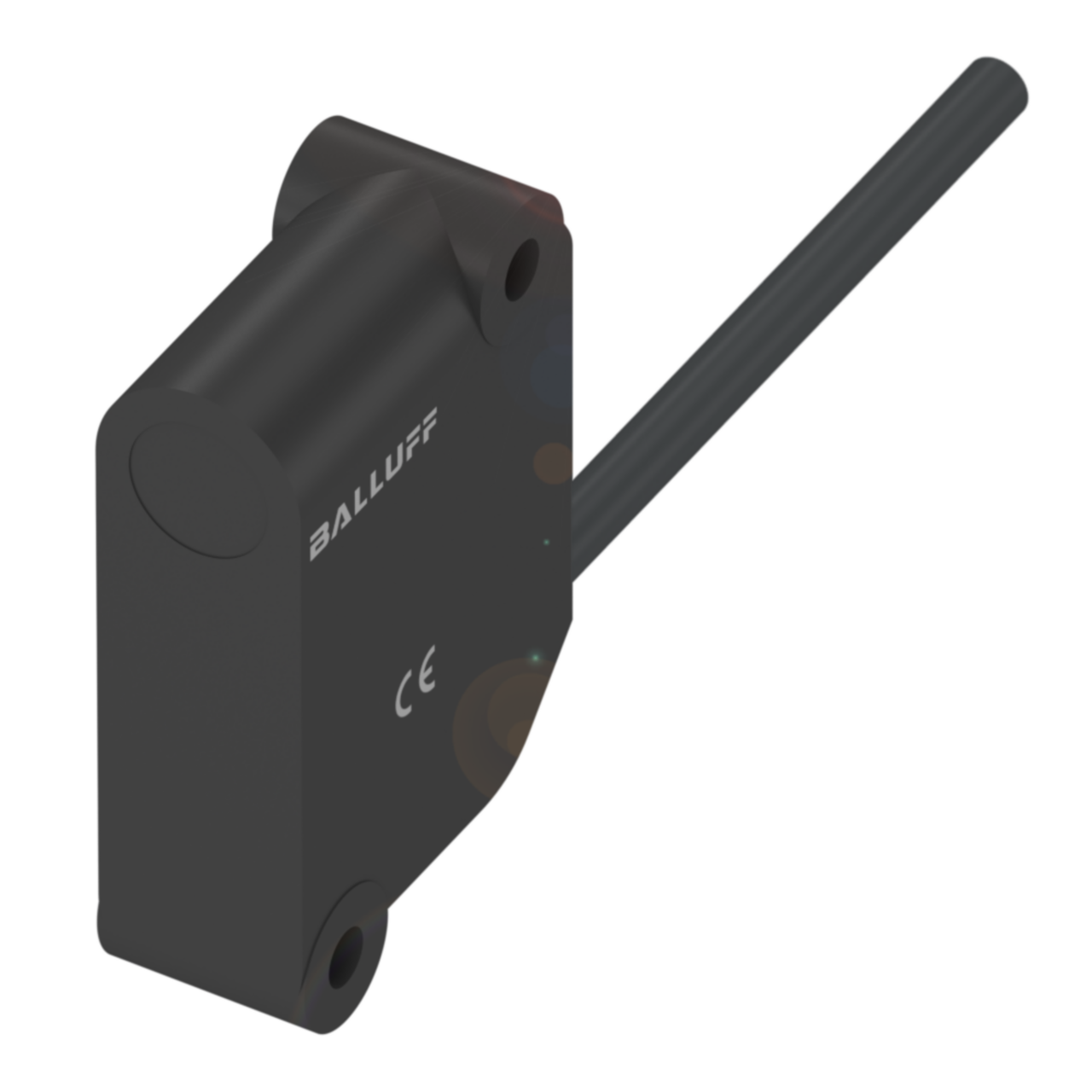

Name: BES R05KB-PSC40B-S49A Balluff Inductive Sensor | Industify
Brand: Balluff
SKU: BES01ZE
Price: 1.00 USD
Availability: InStock

Dimension

40 x 12 x 26 mm

Style Housing

40x12x26

Installation

for flush mounting

Range

4 mm

Switching output

PNP Normally open (NO)

Switching Frequency

400 Hz

Housing material

PA 12

Material sensing surface

PA 12

Connection

M8x1-Male, 3-pin, Connector

Operating voltage Ub

10…30 VDC

Ambient temperature

-25…70 °C

Ip Rating

Ip67

Approval/Conformity

CE, cULus, UKCA, WEEE

Brand

Balluff

Description

Balluff Inductive Sensor for Reliable Performance

Experience enhanced efficiency and accuracy with the Balluff Inductive Sensor. Its compact 40 x 12 x 26 mm dimensions and flush mounting design ensure seamless installation, providing a seamless workflow without disruptions. The PNP Normally open output and high switching frequency of 400 Hz guarantee precise detection, improving overall operational productivity.

Durable Construction: The sensor’s PA 12 housing material and IP67 rating enhance durability, making it suitable for challenging industrial environments.
Wide Operating Range: With an operating voltage of 10 – 30 VDC and an ambient temperature range of -25 – 70 °C, this sensor delivers reliable performance in various conditions.
Compliance and Approval: CE, UKCA, cULus, and WEEE approvals ensure regulatory compliance and peace of mind regarding safety and quality standards.

Trust Balluff Inductive Sensor for consistent and accurate sensing capabilities in your industrial applications. Increase productivity and optimize processes with this reliable and efficient sensor solution.
