Name: BES M18MI-POC50B-S04G Balluff Inductive Sensor | Industify
Brand: Balluff
SKU: BES043J
Price: 1.00 USD
Availability: InStock

Dimension

Ø 18 x 66 mm

Style Housing

M18x1

Installation

for flush mounting

Range

5 mm

Switching output

PNP Normally closed (NC)

Switching Frequency

2000 Hz

Housing material

Brass, Nickel-free coated

Material sensing surface

PBT

Connection

3-pin, Connector, M12x1-Male

Operating voltage Ub

10…30 VDC

Ambient temperature

-40…85 °C

Ip Rating

IP68

Approval/Conformity

CE, cULus, UKCA, WEEE

Additional product information

Customs tariff numbers: 85365019, Product groups key: PA001PG002, Weight (in kg): 0.057, Country of origin: HU

Brand

Balluff

Description

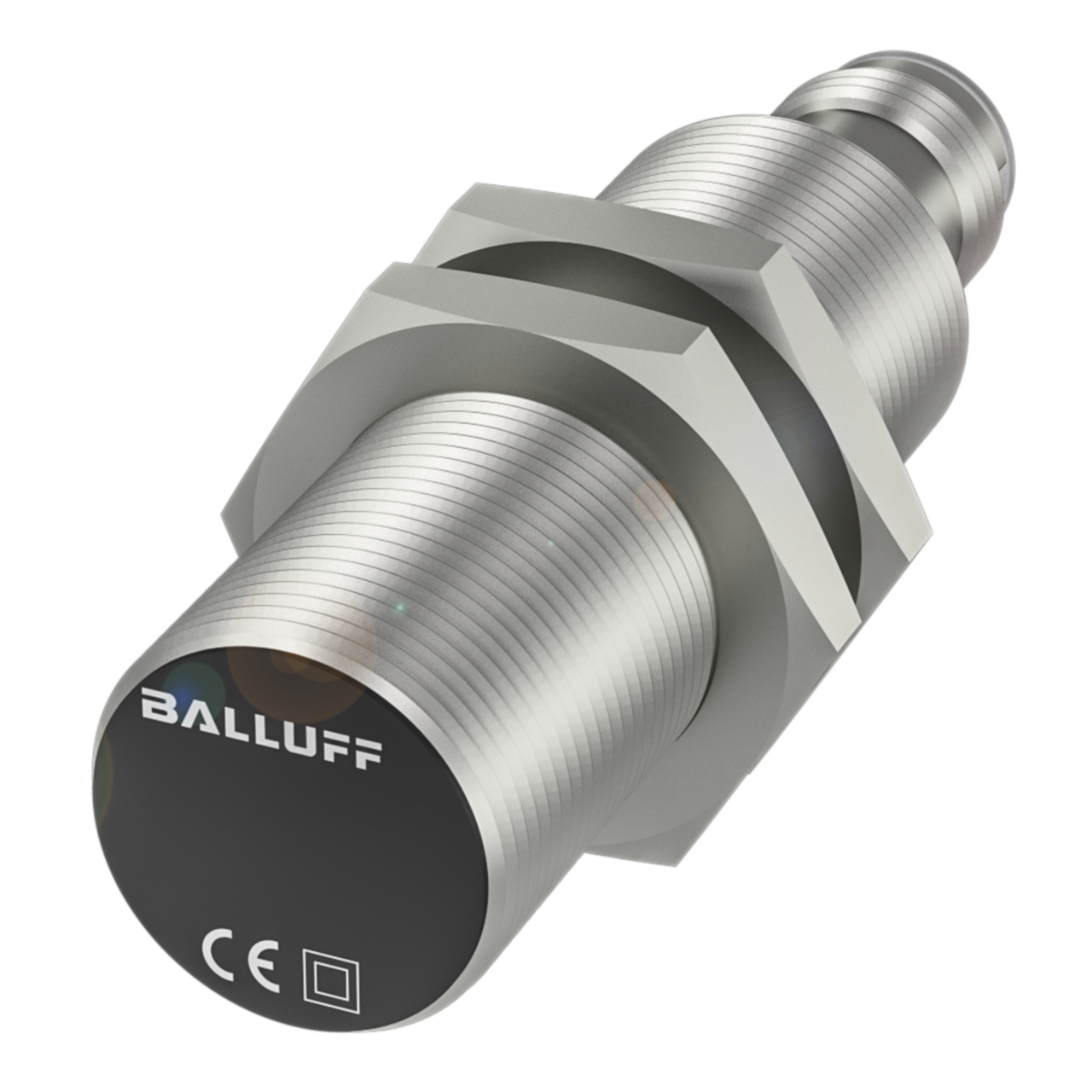

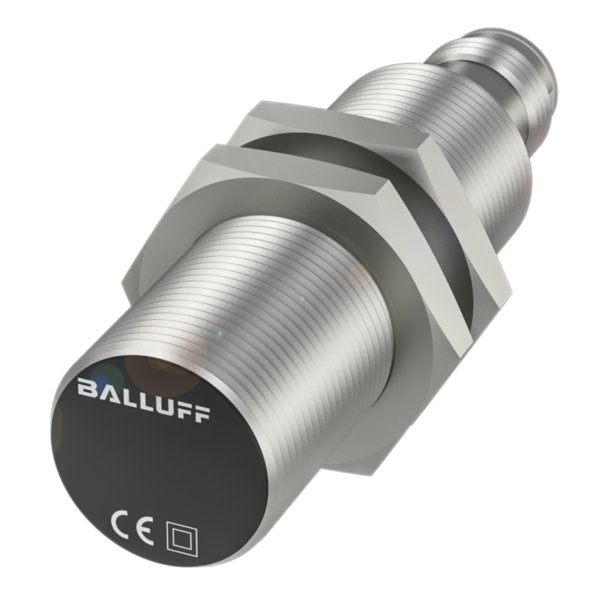

Balluff Inductive Sensor – BES M18MI-POC50B-S04G

The Balluff Inductive Sensor offers precise sensing capabilities, providing reliable detection in industrial applications. With a compact Ø 18 x 66 mm housing and a 5 mm switching range, this sensor ensures accurate detection while seamlessly integrating into your equipment for a streamlined operation. The PNP normally closed (NC) switching output and high 2000 Hz switching frequency enhance efficiency and responsiveness in detecting metal objects, improving overall performance.

Robust Construction: Featuring a durable brass housing with nickel-free coating, this sensor is built to withstand harsh industrial environments, ensuring long-term reliability and minimal maintenance requirements.
Wide Operating Parameters: With an operating voltage range of 10-30 VDC and an ambient temperature range of -40 to 85 °C, this sensor offers versatility and adaptability to a variety of applications, delivering consistent performance in challenging conditions.
Seamless Integration: The M12x1 connector and compact design simplify installation and connection processes, saving time and effort during setup, leading to increased efficiency and productivity.
