Name: BES M08EG1-PSC15S-S04G-S Balluff Inductive Sensor | Industify
Brand: Balluff
SKU: BES02YZ
Price: 1.00 USD
Availability: InStock

Dimension

Ø 8 x 65 mm

Style Housing

M8x1

Installation

for flush mounting

Range

1.5 mm

Switching output

PNP Normally open (NO)

Switching Frequency

80 Hz

Housing material

Stainless steel

Material sensing surface

Stainless steel

Connection

4-pin, Connector, M12x1-Male

Operating voltage Ub

10…30 VDC

Ambient temperature

-25…70 °C

Ip Rating

Ip67

Approval/Conformity

CE, cULus, WEEE

Additional product information

Customs tariff numbers: 85365019, Product groups key: PA001PG002, Country of origin: CZ, Weight (in kg): 0.033

Brand

Balluff

Description

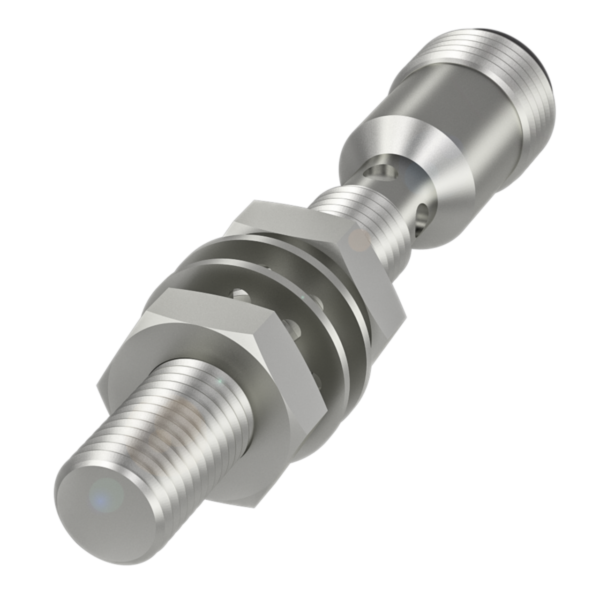

Balluff Inductive Sensor – BES M08EG1-PSC15S-S04G-S

The Balluff Inductive Sensor offers precise detection capabilities, ensuring reliable performance in various industrial applications. Its compact dimensions and stainless steel housing provide durability and long-term use even in harsh environments. The flush mounting design makes installation quick and easy, saving time and effort for users.

The PNP Normally open switching output enhances system efficiency by providing accurate signal communication.
With an operating voltage range of 10-30 VDC and an ambient temperature range of -25°C to 70°C, it offers flexibility and adaptability to different conditions.
The IP67 rating ensures protection against dust and water ingress, guaranteeing reliable operation in challenging industrial settings.

Manufactured in the Czech Republic, the Balluff Inductive Sensor from the PA001PG002 product group is a cost-effective solution that meets international standards, including CE and cULus approvals, providing users with peace of mind and quality assurance in their operations.
