AE1600-SW 3P, BARE, FIXED, AX10 – 193923 Mitsubishi Air Circuit Breaker

Name: AE1600-SW 3P, BARE, FIXED, AX10 - 193923 Mitsubishi Air Circuit Breaker | Industify
Brand: Mitsubishi Electric
SKU: AE1600-SW 3P, BARE, FIXED, AX10
Price: 1.00 USD
Availability: InStock

SKU: AE1600-SW 3P, BARE, FIXED, AX10

Add to wishlist Add to compare

Categories: Air Circuit Breakers, Circuit Breakers, Circuit Breakers and Electrical Protection Tags: 193923, AE1600-SW 3P, AX10, BARE, FIXED

Product information

Series	AE-SW SERIES
Type	FIXED TYPE
Frame Size	1600
Rated Voltage (V)	690
Number of Poles	3
Current Type	AC
Current Range Ir (A)	800-1600
Breaking Capacity at 500V (kA)	65
Cycles with Rated Current	5000
Cycles without Rated Current	25000
No of Auxiliary Contacts NO	5
No of Auxiliary Contacts NC	5
Internal Power Supply (V)	100-240 AC 100-125 DC
Depth (mm)	290
Weight (kg)	42
Width (mm)	340
Height (mm)	410
CE	COMPLIANT
Shipping Approvals	ABS, BV, CCS, LR, DNV, GL, NK
EAC	NON-COMPLIANT
UL/cUL	COMPLIANT
UKCA	COMPLIANT
Cardboard (g)	2500
Steel (g)	348
Wood (g)	7000
REACH Limit Exceeded	NO
RoHS Compliance	COMPLIANT
Dangerous Goods Class	NO
WEEE	B2B
Brand	Mitsubishi Electric

Description

Description

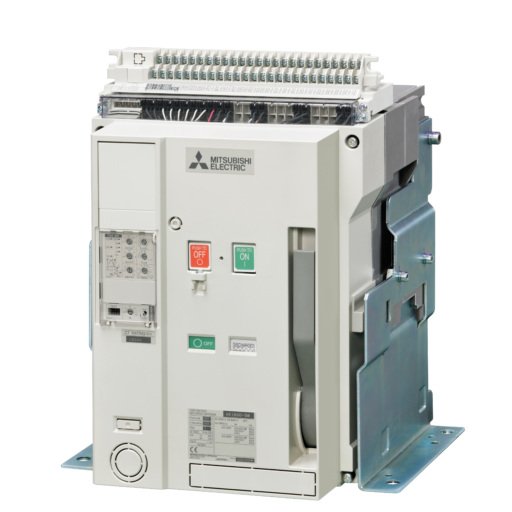

Mitsubishi Fixed Air Circuit Breaker

The Mitsubishi Fixed Air Circuit Breaker from the AE-SW Series provides reliable and efficient protection for your electrical systems. With a rated current range of 800-1600A and a breaking capacity of 65kA at 500V, this circuit breaker ensures safe and secure operation even under high fault conditions.

Enhances safety and reliability of electrical systems
Compact design with a depth of 290mm for easy installation
Lightweight construction for simple handling and maintenance

Compliant with ABS, BV, CCS, and other shipping approvals, the Mitsubishi Fixed Air Circuit Breaker is the ideal choice for industrial and commercial applications where dependable performance is a top priority.
