Name: 9037HW32 Telemecanique | Industify
Brand: Telemecanique
SKU: 9037HW32
Price: 1.00 USD
Availability: InStock

Range of product

Pumptrol

Product or component type

Float switch

Device application

Closed tank

Device short name

9037H

Product specific application

Liquid level control

Electrical circuit type

Power circuit

Quantity per set

Set of 1

Type of packing

Individual

Product destination

For closed tank

Device mounting

Screw-in bushing

Contacts type and composition

2 NC, DPST-DB, Form YY, snap action

Controlled fluid

corrosive fluid at specific gravity of 0.85 in or higher 0-220 °F, Fresh water at specific gravity of 0.85 in or higher 0-220 °F, hydraulic oil at specific gravity of 0.85 in or higher 0-220 °F, sea water at specific gravity of 0.85 in or higher 0-220 °F

Electrical connection

Screw-clamp terminals, clamping capacity: 10 AWG

Contact operation

Contacts close on liquid rise

Float movement

6…11.5 in adjustable

Float position

Left

Float rod angle

90° (offset)

Local signalling

With external pointer

Materials in contact with fluid

Nitrile (Buna-N) or equivalent rubber

Enclosure material

Cast aluminium

Operating position

Vertical position only

Terminal block type

4 terminals

Operating rate

60.0000 CYCLE_PER_MINUTE

Terminals description ISO n°1

Line-load-load-line

Factory modification

Without

Kit composition

Rod

Standards

UL 508

NEMA degree of protection

NEMA 4 conforming to UL 50

Product certifications

UL listed

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

48.3870 CENTIMETER

Package 1 width

19.0500 CENTIMETER

Package 1 length

122.9030 CENTIMETER

Package 1 weight

4.6180 KILOGRAM

Brand

Telemecanique

Description

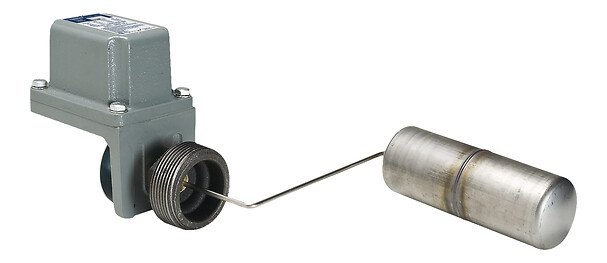

Telemecanique Pumptrol Float Switch for Closed Tanks

Experience precise **liquid level control** with the Telemecanique Pumptrol Float Switch designed for closed tanks. This device ensures **reliable power circuit operation** by using 2 NC snap-action contacts that close on liquid rise, offering a **secure connection** with a clamping capacity of 10 AWG. The device’s **adjustable float movement** allows for a range of 6-11.5 inches, providing **flexibility** in controlling fluid levels.

Secure power circuit operation with snap-action contacts
Adjustable float movement for precise fluid level control
Durable construction with cast aluminum and nitrile materials

With **NEMA 4 degree of protection** and **UL listing**, this float switch delivers **reliable performance** in various applications, from fresh water to corrosive fluids. The Telemecanique Pumptrol Float Switch is designed to enhance **safety** and **efficiency** in liquid level management, making it a **critical component** for closed tank systems.
