HomeShopPressure SensorsDifferential Pressure Sensors9037HG36Z20 Telemecanique

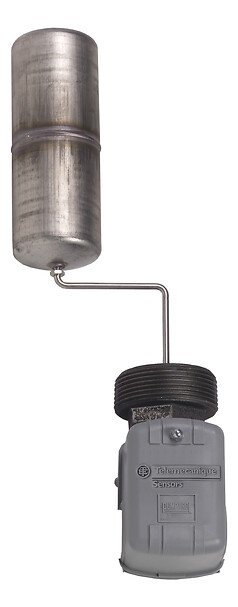

Telemecanique 9037HG36Z20 PumptrolFloat switch - industify.com
Telemecanique

9037HG36Z20 Telemecanique

SKU: 9037HG36Z20

Add to wishlist Add to compare
Categories: , , , , Tag:
Product information
Range of product

Pumptrol
Product or component type

Float switch
Device application

Closed tank
Device short name

9037H
Product specific application

Liquid level control
Electrical circuit type

Power circuit
Quantity per set

Set of 1
Type of packing

Individual
Product destination

For closed tank
Device mounting

Screw-in bushing
Contacts type and composition

2 NC, DPST-DB, Form YY, snap action
Controlled fluid

corrosive fluid at specific gravity of 0.85 in or higher 0-250 °F, Fresh water at specific gravity of 0.85 in or higher 0-250 °F, hydraulic oil at specific gravity of 0.85 in or higher 0-250 °F, sea water at specific gravity of 0.85 in or higher 0-250 °F
Electrical connection

Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation

Contacts close on liquid rise
Float movement

2.5…5 in adjustable
Float position

Left
Float rod angle

90°
Local signalling

With external pointer
Materials in contact with fluid

Viton
Enclosure material

Polypropylene or equivalent
Operating position

Vertical position only
Terminal block type

4 terminals
Operating rate

60.0000 CYCLE_PER_MINUTE
Terminals description ISO n°1

Line-load-load-line
Factory modification

Without
Kit composition

Rod
Standards

UL 508
NEMA degree of protection

NEMA 1 conforming to UL 50
Product certifications

UL listed
Unit type of package 1

PCE
Number of units in package 1

1
Package 1 height

19.6000 CENTIMETER
Package 1 width

18.0000 CENTIMETER
Package 1 length

29.7000 CENTIMETER
Package 1 weight

1.9400 KILOGRAM
Brand

Telemecanique
Description

Description

Telemecanique Pumptrol Float Switch for Closed Tanks

  • Efficient Liquid Level Control: The Telemecanique Pumptrol Float Switch offers precise control over the liquid levels in closed tanks, ensuring optimal performance and preventing overflow or dry running.
  • Durable Construction: With materials specifically selected to withstand various fluids including fresh water, sea water, hydraulic oil, and corrosive liquids, this float switch is built to last in diverse operating environments.
  • Easy Installation and Adjustment: The screw-in bushing and adjustable float rod angle allow for simple installation and customization based on specific tank requirements, providing flexibility and ease of use.

Enhance your liquid level control system with the reliable and versatile Telemecanique Pumptrol Float Switch. Designed for closed tanks, this device offers precise monitoring and control over various fluids, ensuring efficient operation and avoiding potential damages or downtime.
