Telemecanique 9013GHG6J62 Pumptrol9013GH - industify.com
Telemecanique

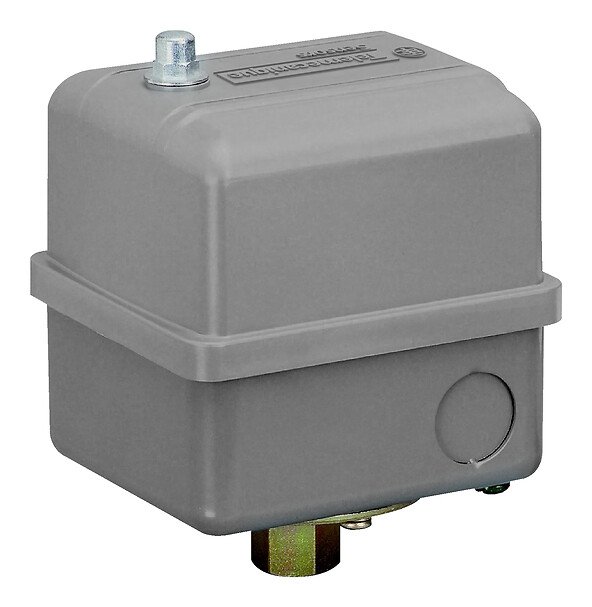

9013GHG6J62 Telemecanique

SKU: 9013GHG6J62

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Range of product

Pumptrol

Pressure sensor name

9013GH

Value of setting

140…175 psi

Electrical circuit type

Power circuit

Product specific application

Control electrically driven water pumps and air compressors

Quantity per set

1

Type of packing

Individual

Factory modification

Not applicable

Pressure sensor type

Electromechanical pressure switch

Controlled fluid

Air (32-158 °F), Fresh water (32-158 °F)

Pressure switch type of operation

Regulation between 2 thresholds

Pressure actuator

Diaphragm

Setting

Internal

Scale type

Adjustable differential

Local display

Without

Contacts type and composition

2 NC, DPST-DB, Form YY, snap action

Electrical connection

Screw-clamp terminals, clamping capacity: 10 AWG, clamping capacity: 5.261 mm²

Materials in contact with fluid

nitrile (Buna-N) or equivalent rubber diaphragm, Zinc plated steel or equivalent flange

Fluid connection type

0.375 inch NPSF internal conforming to UL 508

material

noryl thermoplastic resin or equivalent: cover, Polypropylene: cover

Operating position

Any position

Terminal block type

4 terminals

Operating rate

10.0000 CYCLE_PER_MINUTE

Repeat accuracy

+/- 3 %

Terminals description ISO n°1

L1-T1

Standards

NSF ANSI 372

Product certifications

UL listed

Protective treatment

None

NEMA degree of protection

NEMA 1 conforming to UL 50

IP degree of protection

IP20 conforming to IEC 60529

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

25.8060 CENTIMETER

Package 1 width

10.1600 CENTIMETER

Package 1 length

65.5480 CENTIMETER

Package 1 weight

907.1850 GRAM

Brand

Telemecanique

Description

Description

Telemecanique Pumptrol Pressure Switch

The Telemecanique Pumptrol Pressure Switch offers reliable control for electrically driven water pumps and air compressors, ensuring optimal performance and efficiency. With its electromechanical design, this pressure switch regulates fluid pressure between two thresholds, providing seamless operation and protection for your equipment. The adjustable differential feature allows for customized settings, catering to different applications and requirements.

  • Enhanced Performance: The Pumptrol Pressure Switch maintains a repeat accuracy of +/- 3%, guaranteeing consistent and precise pressure control for your system.
  • Durable Construction: Built with materials that are in contact with fluid like zinc-plated steel and nitrile diaphragm, this pressure switch ensures long-term durability and reliability.
  • Easy Installation: The screw-clamp terminals with a clamping capacity of 10 AWG make it simple to connect and set up the pressure switch, streamlining the installation process.
