Name: 9013FRG22J22 Telemecanique | Industify
Brand: Telemecanique
SKU: 9013FRG22J22
Price: 1.00 USD
Availability: InStock

Range of product

Pumptrol

Pressure sensor name

9013FR

Value of setting

22…12 psi

Electrical circuit type

Power circuit

Product specific application

Control electrically driven water pumps

Quantity per set

Type of packing

Individual

Pressure sensor type

Electromechanical pressure switch

Controlled fluid

Fresh water (32-158 °F)

Pressure actuator

Diaphragm

Pressure switch type of operation

Regulation between 2 thresholds

Scale type

Adjustable differential

Setting

Internal

Local display

Without

Contacts type and composition

2 NO, DPST-DB, Form XX, snap action

Electrical connection

Screw-clamp terminals, clamping capacity: 10 AWG, clamping capacity: 5.261 mm²

Fluid connection type

0.25 inch NPSF internal conforming to UL 508

Materials in contact with fluid

nitrile (Buna-N) or equivalent rubber diaphragm, Zinc plated steel or equivalent flange

material

noryl thermoplastic resin or equivalent: cover, Polypropylene: cover

Operating position

Any position

Terminal block type

4 terminals

Operating rate

10.0000 CYCLE_PER_MINUTE

Repeat accuracy

+/- 3 %

Terminals description ISO n°1

L1-T1

Factory modification

Not applicable

Standards

UL 508

Protective treatment

None

Product certifications

UL listed

NEMA degree of protection

NEMA 1 conforming to UL 50

IP degree of protection

IP20 conforming to IEC 60529

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

25.8060 CENTIMETER

Package 1 width

10.1600 CENTIMETER

Package 1 length

65.5480 CENTIMETER

Package 1 weight

362.8740 GRAM

Unit type of package 2

CAR

Package 2 height

22.8600 CENTIMETER

Package 2 width

39.3700 CENTIMETER

Package 2 length

53.3400 CENTIMETER

Package 2 weight

14.9690 KILOGRAM

Brand

Telemecanique

Description

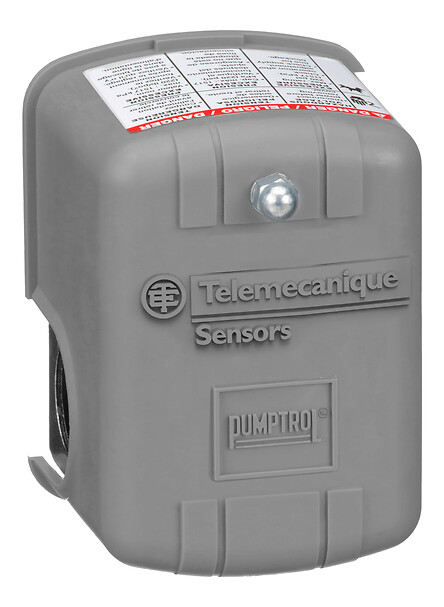

Telemecanique Pumptrol Pressure Switch

Enhance Efficiency: The Telemecanique Pumptrol Pressure Switch is designed to control electrically driven water pumps with precision, ensuring optimal performance and efficiency.

Reliable Operation: With adjustable differential settings and snap-action contacts, this pressure switch offers accurate regulation between two thresholds, providing a dependable solution for pressure control in fresh water applications.

Durable Construction: Featuring zinc-plated steel and high-quality materials in contact with fluid, this pressure switch is built to withstand demanding environments while maintaining safety and reliability.
