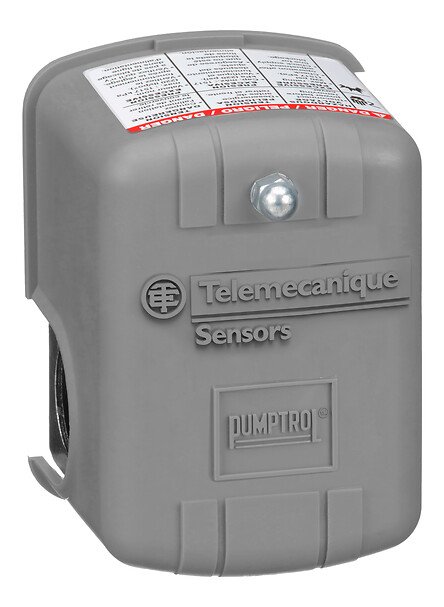

Name: 9013FHG32J55 Telemecanique | Industify
Brand: Telemecanique
SKU: 9013FHG32J55
Price: 1.00 USD
Availability: InStock

Pressure sensor name

9013FH

Value of setting

Off at 150 psi

Electrical circuit type

Power circuit

Product specific application

Control small electrically driven air compressors

Quantity per set

Type of packing

Individual

Pressure sensor type

Electromechanical pressure switch

Controlled fluid

Air (32-158 °F)

Pressure actuator

Diaphragm

Pressure switch type of operation

Regulation between 2 thresholds

Scale type

Fixed differential

Setting

Internal

Local display

Without

Contacts type and composition

2 NC, DPST-DB, Form YY, snap action

Electrical connection

Screw-clamp terminals, clamping capacity: 10 AWG, clamping capacity: 5.261 mm²

Fluid connection type

0.25 inch NPSF internal conforming to UL 508

Materials in contact with fluid

nitrile (Buna-N) or equivalent rubber diaphragm, Zinc plated steel or equivalent flange

material

noryl thermoplastic resin or equivalent: cover, Polypropylene: cover

Operating position

Any position

Terminal block type

4 terminals

Operating rate

10.0000 CYCLE_PER_MINUTE

Repeat accuracy

+/- 3 %

Terminals description ISO n°1

L1-T1

Factory modification

Not applicable

Standards

UL 508

Protective treatment

None

NEMA degree of protection

NEMA 1 conforming to UL 50

IP degree of protection

IP20 conforming to IEC 60529

Product certifications

UL listed

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

25.8060 CENTIMETER

Package 1 width

10.1600 CENTIMETER

Package 1 length

65.5480 CENTIMETER

Package 1 weight

362.8740 GRAM

Brand

Telemecanique

Description

Telemecanique Pressure Sensor for Enhanced Control and Efficiency

The Telemecanique Pressure Sensor offers precise regulation between two thresholds, ensuring optimal performance for small electrically driven air compressors. With a power circuit and electromechanical design, this sensor allows for seamless control of air pressure, improving overall efficiency and reducing energy consumption.

Reliable Performance: The diaphragm pressure actuator ensures accurate pressure control, guaranteeing consistent operation within a set range of 32-158 °F.
Durable Construction: Made with high-quality materials such as zinc-plated steel, nitrile rubber, and polypropylene, this pressure sensor is built to withstand various operating conditions for long-lasting reliability.
Easy Installation: Featuring screw-clamp terminals and fluid connection options, the sensor can be quickly and securely integrated into existing systems without the need for extensive modifications.

Overall, the Telemecanique Pressure Sensor provides a reliable solution for maintaining optimal air pressure in electric compressors, offering users enhanced control, durability, and ease of installation for improved efficiency.
