Name: 9013FHG2J43M1 Telemecanique | Industify
Brand: Telemecanique
SKU: 9013FHG2J43M1
Price: 1.00 USD
Availability: InStock

Range of product

Pumptrol

Pressure sensor name

9013FH

Value of setting

Off at 80 psi

Electrical circuit type

Power circuit

Product specific application

Control small electrically driven air compressors

Quantity per set

Type of packing

Individual

Pressure sensor type

Electromechanical pressure switch

Controlled fluid

Air (32-158 °F)

Pressure actuator

Diaphragm

Pressure switch type of operation

Regulation between 2 thresholds

Scale type

Fixed differential

Setting

Internal

Local display

Without

Contacts type and composition

2 NC, DPST-DB, Form YY, snap action

Electrical connection

Screw-clamp terminals, clamping capacity: 10 AWG, clamping capacity: 5.261 mm²

Fluid connection type

0.25 inch NPSF internal conforming to UL 508

Materials in contact with fluid

nitrile (Buna-N) or equivalent rubber diaphragm, Zinc plated steel or equivalent flange

material

noryl thermoplastic resin or equivalent: cover, Polypropylene: cover

Operating position

Any position

Terminal block type

4 terminals

Operating rate

10.0000 CYCLE_PER_MINUTE

Repeat accuracy

+/- 3 %

Terminals description ISO n°1

L1-T1

Factory modification

Maintained manual cut-out lever (AUTO-OFF)

Standards

UL 508

Protective treatment

None

NEMA degree of protection

NEMA 1 conforming to UL 50

IP degree of protection

IP20 conforming to IEC 60529

Product certifications

UL listed

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

9.6520 CENTIMETER

Package 1 width

9.6520 CENTIMETER

Package 1 length

9.9060 CENTIMETER

Package 1 weight

453.5920 GRAM

Brand

Telemecanique

Description

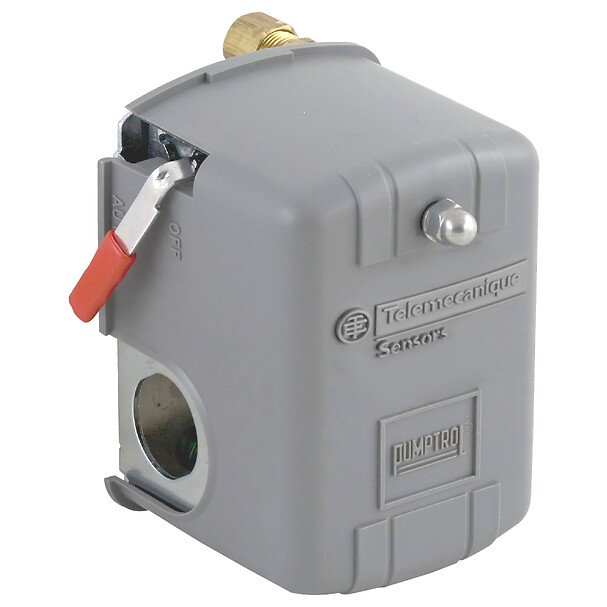

Telemecanique Pumptrol9013FH Pressure Sensor

The Telemecanique Pumptrol9013FH Pressure Sensor offers precise monitoring and control of small electrically driven air compressors. Designed with a robust construction and reliable operation, this electromechanical pressure switch ensures optimal performance in regulating pressure levels between two thresholds. With a fixed differential and internal settings, this pressure sensor provides accurate and consistent readings for efficient operation.

Ensures smooth and reliable control of air compressors
Regulates pressure levels with precision between set thresholds
Offers durable construction and consistent performance

With screw-clamp terminals for easy installation and maintenance, the Pumptrol9013FH simplifies wiring processes and enhances overall user experience. The NEMA 1 and IP20 protection ratings provide added safety and protection against environmental elements, making it suitable for a variety of industrial applications.
