Name: 9013FHG22J27M1 Telemecanique | Industify
Brand: Telemecanique
SKU: 9013FHG22J27M1
Price: 1.00 USD
Availability: InStock

Range of product

Pumptrol

Pressure sensor name

9013FH

Value of setting

Off at 100 psi

Electrical circuit type

Power circuit

Product specific application

Control small electrically driven air compressors

Quantity per set

Type of packing

Individual

Pressure sensor type

Electromechanical pressure switch

Controlled fluid

Air (32-158 °F)

Pressure actuator

Diaphragm

Pressure switch type of operation

Regulation between 2 thresholds

Scale type

Fixed differential

Setting

Internal

Local display

Without

Contacts type and composition

2 NC, DPST-DB, Form YY, snap action

Electrical connection

Screw-clamp terminals, clamping capacity: 10 AWG, clamping capacity: 5.261 mm²

Fluid connection type

0.25 inch NPSF internal conforming to UL 508

Materials in contact with fluid

nitrile (Buna-N) or equivalent rubber diaphragm, Zinc plated steel or equivalent flange

material

noryl thermoplastic resin or equivalent: cover, Polypropylene: cover

Operating position

Any position

Terminal block type

4 terminals

Operating rate

10.0000 CYCLE_PER_MINUTE

Repeat accuracy

+/- 3 %

Terminals description ISO n°1

L1-T1

Factory modification

Maintained manual cut-out lever (AUTO-OFF)

Standards

UL 508

Protective treatment

None

NEMA degree of protection

NEMA 1 conforming to UL 50

IP degree of protection

IP20 conforming to IEC 60529

Product certifications

UL listed

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

25.8060 CENTIMETER

Package 1 width

10.1600 CENTIMETER

Package 1 length

65.5480 CENTIMETER

Package 1 weight

453.5920 GRAM

Brand

Telemecanique

Description

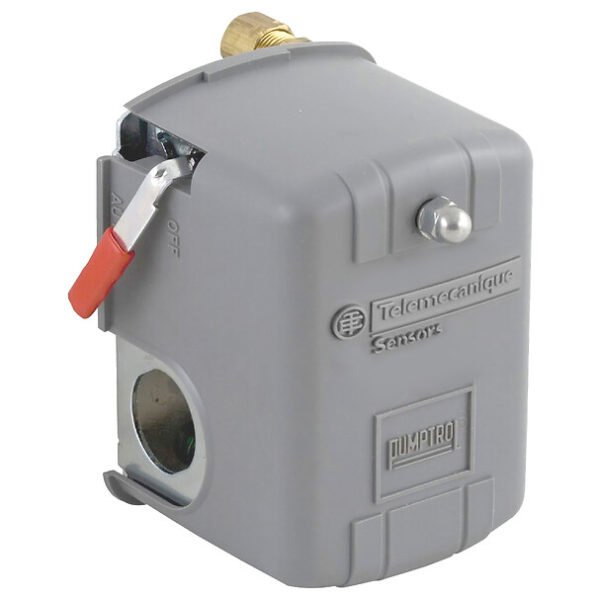

Telemecanique Pumptrol Pressure Switch

Enhance Your Equipment Efficiency: The Telemecanique Pumptrol Pressure Switch is specifically designed to control small electrically driven air compressors, ensuring optimal performance and energy efficiency. Its electromechanical design allows for precise regulation between two thresholds, improving overall system functionality.

Durable and Reliable Construction: With a zinc-plated steel flange and nitrile rubber diaphragm, this pressure switch offers robust protection against environmental factors while maintaining consistent operation. The polypropylene cover and noryl thermoplastic resin components ensure longevity, making it a reliable component for various applications.

Easy Installation and Maintenance: The Pumptrol Pressure Switch features screw-clamp terminals for secure connections, facilitating quick and hassle-free installation. Its maintained manual cut-out lever allows for convenient operation and adjustments, reducing downtime and maintenance costs.
