9013FHG19J39M1X Telemecanique

Name: 9013FHG19J39M1X Telemecanique | Industify
Brand: Telemecanique
SKU: 9013FHG19J39M1X
Price: 1.00 USD
Availability: InStock

SKU: 9013FHG19J39M1X

Add to wishlist Add to compare

Categories: Differential Pressure Sensors, Pressure Sensors, Sensors Tag: Pumptrol

Product information

Range of product	Pumptrol
Pressure sensor name	9013FH
Value of setting	Off at 135 psi
Electrical circuit type	Power circuit
Product specific application	Control small electrically driven air compressors
Quantity per set	1
Type of packing	Individual
Pressure sensor type	Electromechanical pressure switch
Controlled fluid	Air (32-158 °F)
Pressure actuator	Diaphragm
Pressure switch type of operation	Regulation between 2 thresholds
Scale type	Fixed differential
Setting	Internal
Local display	Without
Contacts type and composition	2 NC, DPST-DB, Form YY, snap action
Electrical connection	Screw-clamp terminals, clamping capacity: 10 AWG, clamping capacity: 5.261 mm²
Fluid connection type	0.25 inch NPT external conforming to UL 508
Materials in contact with fluid	nitrile (Buna-N) or equivalent rubber diaphragm, Zinc plated steel or equivalent flange
material	noryl thermoplastic resin or equivalent: cover, Polypropylene: cover
Operating position	Any position
Terminal block type	4 terminals
Operating rate	10.0000 CYCLE_PER_MINUTE
Repeat accuracy	+/- 3 %
Terminals description ISO n°1	L1-T1
Factory modification	2-way pressure release valve
Standards	UL 508
Protective treatment	None
NEMA degree of protection	NEMA 1 conforming to UL 50
IP degree of protection	IP20 conforming to IEC 60529
Product certifications	UL listed
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.7000 CENTIMETER
Package 1 width	9.9000 CENTIMETER
Package 1 length	10.4000 CENTIMETER
Package 1 weight	408.2000 GRAM
Brand	Telemecanique

Description

Description

Description

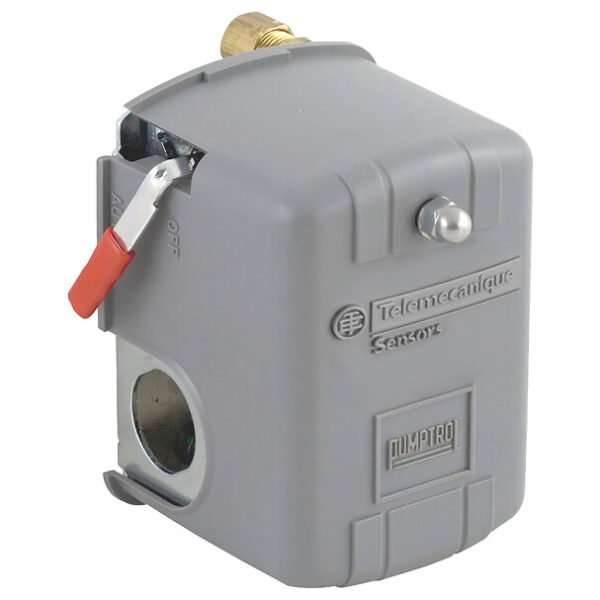

Telemecanique Pumptrol Pressure Switch

Experience precise control and reliable regulation of your air compressor with the Telemecanique Pumptrol Pressure Switch. This electromechanical switch ensures your equipment operates within optimal parameters, enhancing both efficiency and performance with its fixed differential and power circuit attributes.

Ensure safety and consistency with two NC snap-action contacts that swiftly respond to pressure variations.
Benefit from the durable materials used in construction, such as zinc plated steel and nitrile rubber, ensuring longevity and reliability.
With a compact design and simple terminal block connections, the Telemecanique Pumptrol Pressure Switch offers ease of installation and operation in a variety of applications.
