HomeShopPressure SensorsDifferential Pressure Sensors9013FHG19J27X Telemecanique
Telemecanique 9013FHG19J27X Pumptrol9013FH - industify.com
Telemecanique

9013FHG19J27X Telemecanique

SKU: 9013FHG19J27X

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Range of product

Pumptrol

Pressure sensor name

9013FH

Value of setting

Off at 100 psi

Electrical circuit type

Power circuit

Product specific application

Control small electrically driven air compressors

Quantity per set

1

Type of packing

Individual

Pressure sensor type

Electromechanical pressure switch

Controlled fluid

Air (32-158 °F)

Pressure actuator

Diaphragm

Pressure switch type of operation

Regulation between 2 thresholds

Scale type

Fixed differential

Setting

Internal

Local display

Without

Contacts type and composition

2 NC, DPST-DB, Form YY, snap action

Electrical connection

Screw-clamp terminals, clamping capacity: 10 AWG, clamping capacity: 5.261 mm²

Fluid connection type

0.25 inch NPT external conforming to UL 508

Materials in contact with fluid

nitrile (Buna-N) or equivalent rubber diaphragm, Zinc plated steel or equivalent flange

material

noryl thermoplastic resin or equivalent: cover, Polypropylene: cover

Operating position

Any position

Terminal block type

4 terminals

Operating rate

10.0000 CYCLE_PER_MINUTE

Repeat accuracy

+/- 3 %

Terminals description ISO n°1

L1-T1

Factory modification

2-way pressure release valve

Standards

UL 508

Protective treatment

None

NEMA degree of protection

NEMA 1 conforming to UL 50

IP degree of protection

IP20 conforming to IEC 60529

Product certifications

UL listed

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

25.8060 CENTIMETER

Package 1 width

10.1600 CENTIMETER

Package 1 length

65.5480 CENTIMETER

Package 1 weight

390.0890 GRAM

Brand

Telemecanique

Description

Description

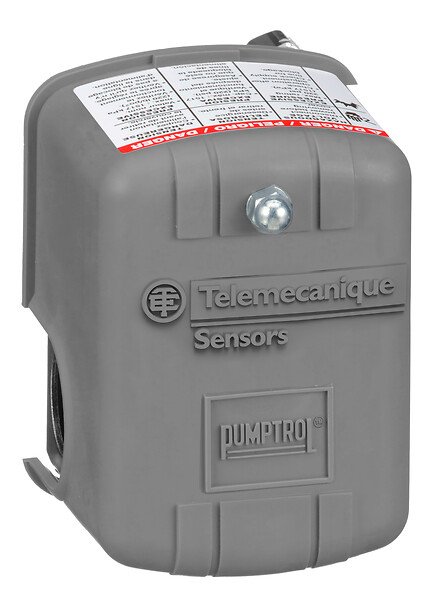

Telemecanique Pumptrol Pressure Switch

The Telemecanique Pumptrol Pressure Switch ensures reliable and efficient operation of small electrically driven air compressors. With a diaphragm design and regulation between two thresholds, this pressure switch offers precise control over air pressure levels, enhancing equipment performance and longevity.

  • Controlled fluid: Air (32-158 °F)
  • Pressure actuator: Diaphragm
  • Setting: Regulation between 2 thresholds
  • Contact type: 2 NC snap action for added safety

With its solid construction featuring materials such as zinc-plated steel and nitrile rubber, this pressure switch ensures durable and reliable operation in various conditions. The easy installation and adjustable settings make it a convenient choice for controlling air pressure in industrial settings.
