HomeShopPressure SensorsDifferential Pressure Sensors9013FHG12J39X Telemecanique

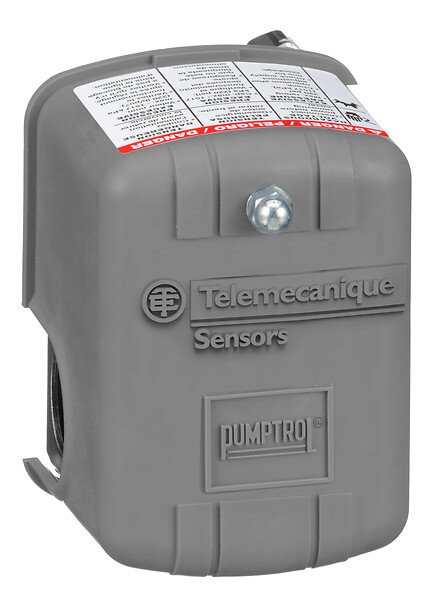

Telemecanique 9013FHG12J39X Pumptrol9013FH - industify.com
Telemecanique

9013FHG12J39X Telemecanique

SKU: 9013FHG12J39X

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Range of product

Pumptrol
Pressure sensor name

9013FH
Value of setting

Off at 135 psi
Electrical circuit type

Power circuit
Product specific application

Control small electrically driven air compressors
Quantity per set

1
Type of packing

Individual
Pressure sensor type

Electromechanical pressure switch
Controlled fluid

Air (32-158 °F)
Pressure actuator

Diaphragm
Pressure switch type of operation

Regulation between 2 thresholds
Scale type

Fixed differential
Setting

Internal
Local display

Without
Contacts type and composition

2 NC, DPST-DB, Form YY, snap action
Electrical connection

Screw-clamp terminals, clamping capacity: 10 AWG, clamping capacity: 5.261 mm²
Fluid connection type

0.25 inch NPSF internal conforming to UL 508
Materials in contact with fluid

nitrile (Buna-N) or equivalent rubber diaphragm, Zinc plated steel or equivalent flange
material

noryl thermoplastic resin or equivalent: cover, Polypropylene: cover
Operating position

Any position
Terminal block type

4 terminals
Operating rate

10.0000 CYCLE_PER_MINUTE
Repeat accuracy

+/- 3 %
Terminals description ISO n°1

L1-T1
Factory modification

2-way pressure release valve
Standards

UL 508
Protective treatment

None
NEMA degree of protection

NEMA 1 conforming to UL 50
IP degree of protection

IP20 conforming to IEC 60529
Product certifications

UL listed
Unit type of package 1

PCE
Number of units in package 1

1
Package 1 height

25.8060 CENTIMETER
Package 1 width

10.1600 CENTIMETER
Package 1 length

65.5480 CENTIMETER
Package 1 weight

453.5920 GRAM
Brand

Telemecanique
Description

Description

Telemecanique Pumptrol Pressure Switch

The Telemecanique Pumptrol Pressure Switch offers reliable and efficient control for small electrically driven air compressors, ensuring optimal performance and extended lifespan of your equipment. Its electromechanical design allows for precise regulation between two thresholds, with a fixed differential for consistent pressure monitoring.

  • Ensures safe operation of air compressors
  • Regulates pressure accurately between set thresholds
  • Enhances equipment longevity and efficiency

The pressure switch features durable materials in contact with fluid, providing reliable performance across various operating conditions. With a NEMA 1 rating and UL listing, this switch offers peace of mind regarding safety and compliance standards.

  • Contains durable materials for long-lasting performance
  • Meets NEMA 1 and UL safety standards
  • Provides peace of mind for regulatory compliance
