Name: 9012GCW22Z18 Telemecanique | Industify
Brand: Telemecanique
SKU: 9012GCW22Z18
Price: 1.00 USD
Availability: InStock

Range of product

9012G

Pressure sensor type

Electromechanical pressure switch

Pressure sensor name

9012G

Maximum pressure

15000 psi

Contacts type and composition

2(NC-NO), DPDT-DB, Form ZZ, silver nickel contacts, snap action

Controlled fluid

air (-15-250 °F), Hydraulic oil (-15-250 °F), non-corrosive gas (-15-250 °F), non-corrosive liquids (-15-250 °F)

Fluid connection type

0.44 inch 20 UNF-2B conforming to UL 508

Pressure switch type of operation

Regulation between 2 thresholds

Scale type

Adjustable differential

Local display

Without

Cable entry

0.5 inch NPT conduit entrance

Terminal block type

8 screw terminals

Electrical connection

Screw-clamp terminals, AWG 22…AWG 12

Terminal identifier

(2-4)NC

Electrical circuit type

Control circuit

Local signalling

Without:

Setting

Internal

Enclosure material

Die cast aluminium alloy 380

Pressure actuator

Piston

Operating position

Any position

Materials in contact with fluid

Nitrile (Buna-N)

Operating rate

120 cyc/mn

Vibration resistance

2 gn (f= 40-150 Hz) conforming to IEC 68-2-6

Shock resistance

50 gn conforming to IEC 58-2-27

Standards

UL 508

Product certifications

UL listed

NEMA degree of protection

NEMA 4/4X/13 conforming to UL 50

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

61.2900 CENTIMETER

Package 1 width

24.1300 CENTIMETER

Package 1 length

155.6770 CENTIMETER

Package 1 weight

1.3610 KILOGRAM

Brand

Telemecanique

Description

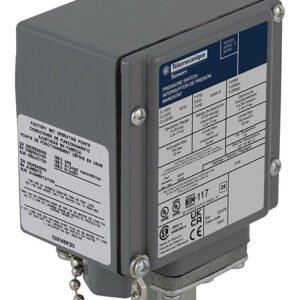

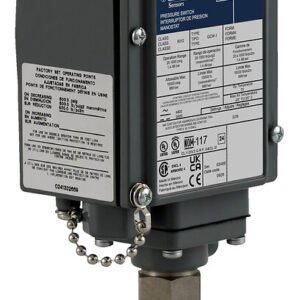

Telemecanique Electromechanical Pressure Switch

Enhance your system’s efficiency and reliability with the Telemecanique Electromechanical Pressure Switch. With a maximum pressure capacity of 15000 psi, this pressure switch ensures accurate and consistent monitoring of fluids and gases. The snap-action silver contacts provide reliable performance, while the adjustable differential allows for precise regulation between two thresholds.

Robust Construction: Die-cast aluminum alloy and nitrile materials ensure durability and longevity in various operating conditions.
Flexible Installation: With multiple terminal options and electrical connections, this pressure switch offers easy integration into your system.
Wide Fluid Compatibility: Suitable for hydraulic oil, non-corrosive liquids, air, and gas, this pressure switch adapts to a range of applications.

Trust in the Telemecanique Electromechanical Pressure Switch for accurate pressure monitoring and control in industrial settings. With UL listing, NEMA 4/4X/13 protection, and compliance with industry standards, this pressure switch delivers peace of mind and exceptional performance.
