HomeShopPressure SensorsGauge Pressure Sensors9012GAW5G17 Telemecanique

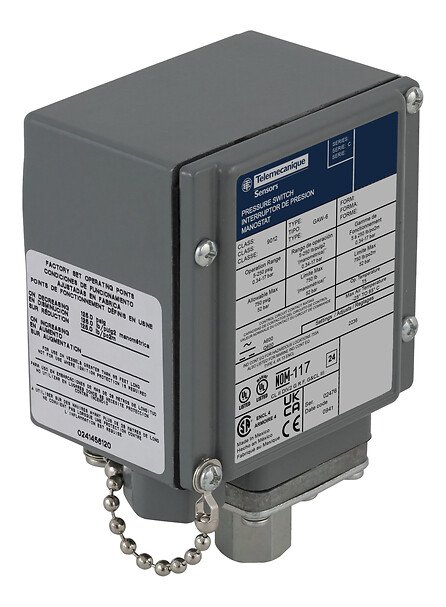

Telemecanique 9012GAW5G17 Electromechanical pressure switch9012G - industify.com
Telemecanique

9012GAW5G17 Telemecanique

SKU: 9012GAW5G17

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Pressure sensor type

Electromechanical pressure switch

Pressure sensor name

9012G

Maximum pressure

475 psi

Contacts type and composition

Form Z, NC-NO, silver nickel contacts, snap action, SPDT-DB

Controlled fluid

air (-40-250 °F), Hydraulic oil (-40-250 °F), non-corrosive gas (-40-250 °F), non-corrosive liquids (-40-250 °F)

Fluid connection type

0.25 inch 18 NPTF conforming to UL 508

Pressure switch type of operation

Regulation between 2 thresholds

Scale type

Adjustable differential

Local display

Without

Cable entry

0.5 inch NPT conduit entrance

Terminal block type

4 screw terminals

Electrical connection

Screw-clamp terminals, AWG 22…AWG 12

Terminal identifier

(3)gnd

Electrical circuit type

Control circuit

Local signalling

1 neon: (clear) 120 V AC/DC (105…125 V)

Setting

Internal

Enclosure material

Die cast aluminium alloy 380

Pressure actuator

Diaphragm nitrile (Buna-N)

Operating position

Any position

Materials in contact with fluid

Nitrile (Buna-N)

Operating rate

120 cyc/mn

Vibration resistance

2 gn (f= 40-150 Hz) conforming to IEC 68-2-6

Shock resistance

50 gn conforming to IEC 58-2-27

Standards

UL 508

Product certifications

UL listed

NEMA degree of protection

NEMA 4/4X/13 conforming to UL 50

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

61.2900 CENTIMETER

Package 1 width

24.1300 CENTIMETER

Package 1 length

155.6770 CENTIMETER

Package 1 weight

1.3380 KILOGRAM

Brand

Telemecanique

Description

Description

Telemecanique Electromechanical Pressure Switch

The Telemecanique Electromechanical Pressure Switch offers reliable performance and versatile functionality for a wide range of applications. With its adjustable differential and regulation between two thresholds, this pressure switch provides precise control over various fluids and gases, ensuring optimal operation and efficiency.

  • Robust Construction: Built with high-quality materials and designed to withstand harsh environments, this pressure switch offers long-lasting durability and consistent performance.
  • Easy Installation: Featuring screw-clamp terminals and a simple setup process, users can quickly integrate this pressure switch into their systems with minimal effort.
  • Versatile Applications: Suitable for hydraulic oils, non-corrosive liquids, air, and gases, this pressure switch can adapt to diverse industrial settings, making it a versatile solution for different needs.
