HomeShopSwitches and ActuatorsLimit Switches9007FTUB1 Telemecanique

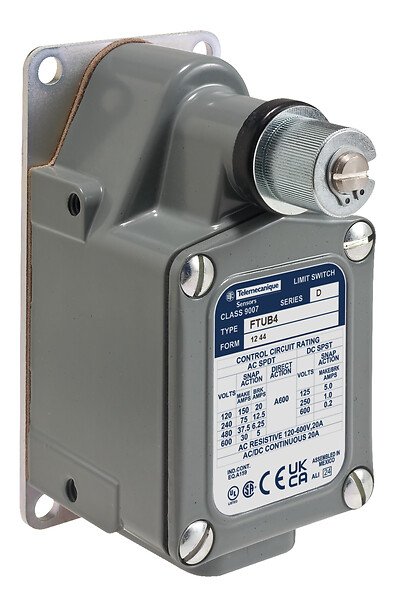

Telemecanique 9007FTUB1 9007Severe duty foundry - industify.com
Telemecanique

9007FTUB1 Telemecanique

SKU: 9007FTUB1

Add to wishlist Add to compare
Categories: , , Tag:
Product information
Range of product

9007

Series name

Severe duty foundry

Product or component type

Limit switch

Device application

Universal foundry switch

Device short name

9007T/FT

Body type

Fixed

Head type

Rotary head

Base plate style

Style B

Body Material

Cast zinc

Fixing mode

By the body

Movement of operating head

Rotary

Type of operator

Spring return without operating lever

Switch actuation

From left

Function available

Not applicable

Electrical connection

Screw-clamp terminals AWG 22…AWG 12

Type of approach

Lateral approach

Cable entry

1 entry for 1/2" – 14 NPT conforming to ANSI B1.20.1

Switch function

SPDT-DB

Contact operation

Snap action

Contact form

Form Z

Contacts material

Silver flashed copper

Positive opening

Without

Contacts usage

Not applicable

Repeat accuracy

+/- 0.004 in linear travel of cam on 1.5 in lever arm

Contact code designation

A600, AC (Ue = 120 V) Ie = 20 A conforming to NEMA rating designation, AC (Ue = 240 V) Ie = 12.5 A conforming to NEMA rating designation, AC (Ue = 480 V) Ie = 6.25 A conforming to NEMA rating designation, AC (Ue = 600 V) Ie = 5 A conforming to NEMA rating designation, DC (Ue = 120 V) Ie = 5 A conforming to NEMA rating designation, DC (Ue = 250 V) Ie = 1 A conforming to NEMA rating designation, DC (Ue = 600 V) Ie = 0.2 A conforming to NEMA rating designation, P600

Terminals description ISO n°1

B (right side contact)

Shock resistance

30 gn for 9 ms conforming to IEC 60068-2-27

Vibration resistance

10 gn (f= 10-55 Hz) conforming to IEC 60068-2-6

NEMA degree of protection

NEMA 1 conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250

IP degree of protection

IP67 conforming to IEC 60529

Electrical shock protection class

Class 0 conforming to IEC 61140

Protective treatment

Corrosion resistant gray paint

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.8900 CENTIMETER

Package 1 width

16.2560 CENTIMETER

Package 1 length

7.3660 CENTIMETER

Package 1 weight

1.1340 KILOGRAM

Brand

Telemecanique

Description

Description

Telemecanique Universal Foundry Limit Switch

The **Telemecanique Universal Foundry Limit Switch** offers robust performance in demanding industrial environments, providing reliable operation in severe duty conditions. With a corrosion-resistant gray paint finish, this switch ensures longevity and durability, making it ideal for foundry applications where harsh elements are present. The snap action switch function and positive opening mechanism guarantee safe and efficient operation, enhancing overall workplace safety.

  • Designed for severe duty foundry applications
  • Corrosion-resistant gray paint for long-lasting durability
  • Snap action switch function with positive opening mechanism for enhanced safety

With protection classes such as NEMA 1, NEMA 2, NEMA 4, NEMA 12, and NEMA 13, as well as an IP67 degree of protection, this Telemecanique Limit Switch ensures reliable performance even in challenging environments. The Telemecanique Universal Foundry Limit Switch is a dependable choice for industrial settings where durability, safety, and longevity are essential.
